#include <AbsorptionOnlyMaterialMixDecorator.hpp>

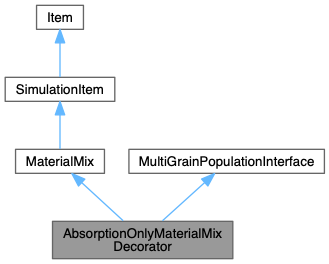

Inheritance diagram for AbsorptionOnlyMaterialMixDecorator:

[legend]

Public Member Functions
virtual DynamicStateType	hasDynamicMediumState () const override

virtual bool	hasExtraSpecificState () const override

virtual bool	hasNegativeExtinction () const override

virtual bool	hasPolarizedAbsorption () const override

virtual bool	hasPolarizedScattering () const override

virtual bool	hasResonantScattering () const override

virtual double	indicativeTemperature (const MaterialState *state, const Array &Jv) const override

virtual void	initializeSpecificState (MaterialState *state, double metallicity, double temperature, const Array &params) const override

virtual bool	isSpecificStateConverged (int numCells, int numUpdated, int numNotConverged, MaterialState currentAggregate, MaterialState previousAggregate) const override

virtual double	mass () const override

MaterialMix *	materialMix () const

virtual MaterialType	materialType () const override

int	numPopulations () const override

virtual double	opacityAbs (double lambda, const MaterialState state, const PhotonPacket pp) const override

virtual double	opacityExt (double lambda, const MaterialState state, const PhotonPacket pp) const override

virtual double	opacitySca (double lambda, const MaterialState state, const PhotonPacket pp) const override

virtual vector< SnapshotParameter >	parameterInfo () const override

double	populationBulkDensity (int c) const override

string	populationGrainType (int c) const override

double	populationMass (int c) const override

const GrainSizeDistribution *	populationSizeDistribution (int c) const override

Range	populationSizeRange (int c) const override

virtual double	sectionAbs (double lambda) const override

virtual double	sectionExt (double lambda) const override

virtual double	sectionSca (double lambda) const override

virtual vector< StateVariable >	specificStateVariableInfo () const override

double	totalMass () const override

virtual UpdateStatus	updateSpecificState (MaterialState *state, const Array &Jv) const override

Public Member Functions inherited from MaterialMix
virtual double	asymmpar (double lambda) const

virtual Array	emissionSpectrum (const MaterialState *state, const Array &Jv) const

virtual DisjointWavelengthGrid *	emissionWavelengthGrid () const

virtual Array	emissivity (const Array &Jv) const

virtual bool	hasContinuumEmission () const

virtual DynamicStateType	hasDynamicMediumState () const

virtual bool	hasExtraSpecificState () const

virtual bool	hasLineEmission () const

virtual bool	hasNegativeExtinction () const

virtual bool	hasPolarizedAbsorption () const

virtual bool	hasPolarizedEmission () const

virtual bool	hasPolarizedScattering () const

virtual bool	hasResonantScattering () const

virtual bool	hasScatteringDispersion () const

virtual bool	hasStochasticDustEmission () const

virtual double	indicativeTemperature (const MaterialState *state, const Array &Jv) const

virtual void	initializeSpecificState (MaterialState *state, double metallicity, double temperature, const Array &params) const

bool	isDust () const

bool	isElectrons () const

bool	isGas () const

virtual bool	isSpecificStateConverged (int numCells, int numUpdated, int numNotConverged, MaterialState currentAggregate, MaterialState previousAggregate) const

virtual Array	lineEmissionCenters () const

virtual Array	lineEmissionMasses () const

virtual Array	lineEmissionSpectrum (const MaterialState *state, const Array &Jv) const

virtual double	mass () const =0

virtual MaterialType	materialType () const =0

virtual double	opacityAbs (double lambda, const MaterialState state, const PhotonPacket pp) const =0

virtual double	opacityExt (double lambda, const MaterialState state, const PhotonPacket pp) const =0

virtual double	opacitySca (double lambda, const MaterialState state, const PhotonPacket pp) const =0

virtual vector< SnapshotParameter >	parameterInfo () const

virtual bool	peeloffScattering (double &I, double &Q, double &U, double &V, double &lambda, Direction bfkobs, Direction bfky, const MaterialState state, const PhotonPacket pp) const

virtual void	performScattering (double lambda, const MaterialState state, PhotonPacket pp) const

virtual bool	scatteringEmulatesSecondaryEmission () const

virtual double	sectionAbs (double lambda) const =0

virtual double	sectionExt (double lambda) const =0

virtual const Array &	sectionsAbs (double lambda) const

virtual const Array &	sectionsAbspol (double lambda) const

virtual double	sectionSca (double lambda) const =0

virtual vector< StateVariable >	specificStateVariableInfo () const =0

virtual const Array &	thetaGrid () const

virtual UpdateStatus	updateSpecificState (MaterialState *state, const Array &Jv) const

Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const

template<class T >
T *	interface (int levels=-999999, bool setup=true) const

virtual string	itemName () const

void	setup ()

string	typeAndName () const

Public Member Functions inherited from Item
	Item (const Item &)=delete

virtual	~Item ()

void	addChild (Item *child)

const vector< Item * > &	children () const

virtual void	clearItemListProperty (const PropertyDef *property)

void	destroyChild (Item *child)

virtual bool	getBoolProperty (const PropertyDef *property) const

virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const

virtual double	getDoubleProperty (const PropertyDef *property) const

virtual string	getEnumProperty (const PropertyDef *property) const

virtual int	getIntProperty (const PropertyDef *property) const

virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const

virtual Item *	getItemProperty (const PropertyDef *property) const

virtual string	getStringProperty (const PropertyDef *property) const

int	getUtilityProperty (string name) const

virtual void	insertIntoItemListProperty (const PropertyDef property, int index, Item item)

Item &	operator= (const Item &)=delete

Item *	parent () const

virtual void	removeFromItemListProperty (const PropertyDef *property, int index)

virtual void	setBoolProperty (const PropertyDef *property, bool value)

virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)

virtual void	setDoubleProperty (const PropertyDef *property, double value)

virtual void	setEnumProperty (const PropertyDef *property, string value)

virtual void	setIntProperty (const PropertyDef *property, int value)

virtual void	setItemProperty (const PropertyDef property, Item item)

virtual void	setStringProperty (const PropertyDef *property, string value)

void	setUtilityProperty (string name, int value)

virtual string	type () const

Public Member Functions inherited from MultiGrainPopulationInterface
virtual	~MultiGrainPopulationInterface ()

virtual int	numPopulations () const =0

virtual double	populationBulkDensity (int c) const =0

virtual string	populationGrainType (int c) const =0

virtual double	populationMass (int c) const =0

virtual const GrainSizeDistribution *	populationSizeDistribution (int c) const =0

virtual Range	populationSizeRange (int c) const =0

virtual double	totalMass () const =0

Protected Member Functions
	AbsorptionOnlyMaterialMixDecorator ()

bool	offersInterface (const std::type_info &interfaceTypeInfo) const override

Protected Member Functions inherited from MaterialMix
	MaterialMix ()

Configuration *	config () const

Random *	random () const

void	setupSelfBefore () override

Protected Member Functions inherited from SimulationItem
	SimulationItem ()

virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const

virtual void	setupSelfAfter ()

virtual void	setupSelfBefore ()

Protected Member Functions inherited from Item
	Item ()

Protected Member Functions inherited from MultiGrainPopulationInterface
	MultiGrainPopulationInterface ()

Private Types
using	BaseType = MaterialMix

using	ItemType = AbsorptionOnlyMaterialMixDecorator

Private Attributes
MaterialMix *	_materialMix

Friends
class	ItemRegistry

Additional Inherited Members
Public Types inherited from MaterialMix
enum class	DynamicStateType { None , Primary , Secondary , PrimaryIfMergedIterations }

enum class	MaterialType { Dust , Electrons , Gas }

Detailed Description

AbsorptionOnlyMaterialMixDecorator is a material mix decorator that removes scattering from any material mix, passing through just the absorption properties. It can be used to evaluate the effects of scattering on observations. As a result, one can use SKIRT to test different versions of approximate radiation transfer:

a version that accounts for scattering out of the line of sight but neglects scattering into the line of sight; this can be obtained from the direct flux offered by the SKIRT instruments.
a version that neglects scattering both out of and into the line of sight; this can be obtained by removing all scattering from the material mix using this decorator.

Fragmented dust mixes

When working with fragmented dust mixes, first apply the FragmentDustMixDecorator to the original MultiGrainDustMix and then apply the AbsorptionOnlyMaterialMixDecorator to the FragmentDustMixDecorator. The other way around doesn't work because the FragmentDustMixDecorator explicitly expects a MultiGrainDustMix while the AbsorptionOnlyMaterialMixDecorator inherits directly from MaterialMix. This is not really a limitation as the intended goal is properly achieved.

Limitations

The current implementation of this decorator does not support secondary emission. To make this work, the decorator would need to pass through all material mix functions related to dust and/or gas emission, and the dynamic casting of material mix subclasses in the secondary emission framework would need to be replaced by the SimulationItem::interface() mechanism.

Similarly, the current implementation of the decorator does not support dynamic dust destruction. To make this work, the decorator would need to implement the additional functions in the FragmentDustMixDecorator class provided for this purpose as a separate interface, and the DustDestructionRecipe class would need to use this interface rather than calling the FragmentDustMixDecorator class directly.

This item type is allowed only if the Boolean expression "!Emission" evaluates to true after replacing the names by true or false depending on their presence.

This item type is displayed only if the Boolean expression "Level3" evaluates to true after replacing the names by true or false depending on their presence.

Constructor & Destructor Documentation

◆ AbsorptionOnlyMaterialMixDecorator()

AbsorptionOnlyMaterialMixDecorator::AbsorptionOnlyMaterialMixDecorator ( )

inlineprotected

Default constructor for concrete Item subclass AbsorptionOnlyMaterialMixDecorator : "a decorator that removes scattering from any material mix" .

Member Function Documentation

◆ hasDynamicMediumState()

virtual DynamicStateType AbsorptionOnlyMaterialMixDecorator::hasDynamicMediumState ( ) const

overridevirtual

This function returns an enumeration indicating whether the decorated material mix offers an algorithm to update its specific medium state, and if so, when the updateSpecificState() function should be called.

Reimplemented from MaterialMix.

◆ hasExtraSpecificState()

virtual bool AbsorptionOnlyMaterialMixDecorator::hasExtraSpecificState ( ) const

overridevirtual

This function returns true if the cross sections returned by the decorated material mix may depend on the values of specific state variables other than the number density, and false otherwise.

Reimplemented from MaterialMix.

◆ hasNegativeExtinction()

virtual bool AbsorptionOnlyMaterialMixDecorator::hasNegativeExtinction ( ) const

overridevirtual

This function returns true if the extinction cross section (the sum of the absorption and scattering cross section) for the decorated material mix can be negative, and false otherwise.

Reimplemented from MaterialMix.

◆ hasPolarizedAbsorption()

virtual bool AbsorptionOnlyMaterialMixDecorator::hasPolarizedAbsorption ( ) const

overridevirtual

This function returns true if the absorption of radiation for the decorated material mix is dichroic (i.e. the absorption cross section depends on the polarization state of incoming photon and the polarization state is adjusted during absorption), and false otherwise.

Reimplemented from MaterialMix.

◆ hasPolarizedScattering()

virtual bool AbsorptionOnlyMaterialMixDecorator::hasPolarizedScattering ( ) const

overridevirtual

This function returns true if the decorated material mix supports polarization during scattering events, and false otherwise.

Reimplemented from MaterialMix.

◆ hasResonantScattering()

virtual bool AbsorptionOnlyMaterialMixDecorator::hasResonantScattering ( ) const

overridevirtual

This function returns true if scattering for the decorated material mix is resonant (such as for Lyman-alpha), and false otherwise.

Reimplemented from MaterialMix.

◆ indicativeTemperature()

virtual double AbsorptionOnlyMaterialMixDecorator::indicativeTemperature	(	const MaterialState *	state,
		const Array &	Jv
	)		const

overridevirtual

This function returns an indicative temperature for the material represented by the specified material state and the decorated material mix, assuming an embedding radiation field specified by the mean intensities \((J_\lambda)_\ell\), if available. The interpretation of the indicative temperature depends heavily on the material type.

Reimplemented from MaterialMix.

◆ initializeSpecificState()

virtual void AbsorptionOnlyMaterialMixDecorator::initializeSpecificState	(	MaterialState *	state,
		double	metallicity,
		double	temperature,
		const Array &	params
	)		const

overridevirtual

This function initializes any specific state variables requested by the decorated material mix through the specificStateVariableInfo() function except for the number density.

Reimplemented from MaterialMix.

◆ isSpecificStateConverged()

virtual bool AbsorptionOnlyMaterialMixDecorator::isSpecificStateConverged	(	int	numCells,
		int	numUpdated,
		int	numNotConverged,
		MaterialState *	currentAggregate,
		MaterialState *	previousAggregate
	)		const

overridevirtual

If the decorated material mix has a dynamic medium state, i.e. if the hasDynamicMediumState() function returns anything other than None, this function is invoked (once) after updateSpecificState() has been called for all spatial cells. The numCells, numUpdated and numNotConverged arguments specify respectively the number of spatial cells in the simulation, the number of cells updated during this update cycle, and the number of updated cells that have not yet converged. The currentAggregate and previousAggregate arguments provide the current and previous aggregate material states for this material mix (for more information, see the section on aggregation in the MediumState class header). Based on this information and any relevant user configuration options, the function returns true if the medium state is considered to be converged and false if not.

Reimplemented from MaterialMix.

◆ mass()

virtual double AbsorptionOnlyMaterialMixDecorator::mass ( ) const

overridevirtual

This function returns the mass per entity \(\mu\) for the decorated material mix.

Implements MaterialMix.

◆ materialMix()

AbsorptionOnlyMaterialMixDecorator::materialMix ( ) const

inline

This function returns the value of the discoverable item property materialMix : "the material mix to be decorated" .

The default value for this property is given by the conditional value expression "MeanInterstellarDustMix" .

◆ materialType()

virtual MaterialType AbsorptionOnlyMaterialMixDecorator::materialType ( ) const

overridevirtual

This function returns the fundamental material type represented by the decorated material mix.

Implements MaterialMix.

◆ numPopulations()

int AbsorptionOnlyMaterialMixDecorator::numPopulations ( ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ offersInterface()

bool AbsorptionOnlyMaterialMixDecorator::offersInterface ( const std::type_info & interfaceTypeInfo ) const

overrideprotectedvirtual

This function is used by the interface() function to ensure that the receiving item can actually offer the specified interface. If the requested interface is the MultiGrainPopulationInterface, the implementation in this class returns true if the decorated material mix offers the MultiGrainPopulationInterface, and false otherwise. For other requested interfaces, the function invokes its counterpart in the base class.

Reimplemented from SimulationItem.

◆ opacityAbs()

virtual double AbsorptionOnlyMaterialMixDecorator::opacityAbs	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp
	)		const

overridevirtual

This function returns the absorption opacity \(k^\text{abs}=n\varsigma^\text{abs}\) for the given wavelength, material state, and photon properties, for the decorated material mix.

Implements MaterialMix.

◆ opacityExt()

virtual double AbsorptionOnlyMaterialMixDecorator::opacityExt	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp
	)		const

overridevirtual

This function returns the absorption opacity for the decorated material mix as the extinction opacity, because this decorator blocks scattering: \(k^\text{ext}=k^\text{abs}\) for the given wavelength, material state, and photon properties.

Implements MaterialMix.

◆ opacitySca()

virtual double AbsorptionOnlyMaterialMixDecorator::opacitySca	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp
	)		const

overridevirtual

This function always returns zero as the scattering opacity \(k^\text{sca}=n\varsigma^\text{sca}\) for the given wavelength, material state, and photon properties, because this decorator blocks scattering.

Implements MaterialMix.

◆ parameterInfo()

virtual vector< SnapshotParameter > AbsorptionOnlyMaterialMixDecorator::parameterInfo ( ) const

overridevirtual

This function returns the number and type of import parameters required by the decorated material mix as a list of SnapshotParameter objects.

Reimplemented from MaterialMix.

◆ populationBulkDensity()

double AbsorptionOnlyMaterialMixDecorator::populationBulkDensity ( int c ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ populationGrainType()

string AbsorptionOnlyMaterialMixDecorator::populationGrainType ( int c ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ populationMass()

double AbsorptionOnlyMaterialMixDecorator::populationMass ( int c ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ populationSizeDistribution()

const GrainSizeDistribution * AbsorptionOnlyMaterialMixDecorator::populationSizeDistribution ( int c ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ populationSizeRange()

Range AbsorptionOnlyMaterialMixDecorator::populationSizeRange ( int c ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ sectionAbs()

virtual double AbsorptionOnlyMaterialMixDecorator::sectionAbs ( double lambda ) const

overridevirtual

This function returns the default absorption cross section per entity \(\varsigma^{\text{abs}}_{\lambda}\) at wavelength \(\lambda\) for the decorated material mix.

Implements MaterialMix.

◆ sectionExt()

virtual double AbsorptionOnlyMaterialMixDecorator::sectionExt ( double lambda ) const

overridevirtual

This function returns the absorption cross section per entity of the decorated material mix as the default extinction cross section per entity, because this decorator blocks scattering: \(\varsigma^{\text{ext}}_{\lambda} = \varsigma^{\text{abs}}_{\lambda}\) at all wavelengths \(\lambda\).

Implements MaterialMix.

◆ sectionSca()

virtual double AbsorptionOnlyMaterialMixDecorator::sectionSca ( double lambda ) const

overridevirtual

This function always returns zero as the default scattering cross section per entity \(\varsigma^{\text{sca}}_{\lambda}\) at any wavelength \(\lambda\), because this decorator blocks scattering.

Implements MaterialMix.

◆ specificStateVariableInfo()

virtual vector< StateVariable > AbsorptionOnlyMaterialMixDecorator::specificStateVariableInfo ( ) const

overridevirtual

This function returns a list of StateVariable objects describing the specific state variables used by the decorated material mix.

Implements MaterialMix.

◆ totalMass()

double AbsorptionOnlyMaterialMixDecorator::totalMass ( ) const

overridevirtual

If the decorated material mix offers the MultiGrainPopulationInterface, this function returns the result returned by the decorated material mix. Otherwise it throws a fatal error.

Implements MultiGrainPopulationInterface.

◆ updateSpecificState()

virtual UpdateStatus AbsorptionOnlyMaterialMixDecorator::updateSpecificState	(	MaterialState *	state,
		const Array &	Jv
	)		const

overridevirtual

If the decorated material mix has a dynamic medium state, i.e. if the hasDynamicMediumState() function returns anything other than None, this function is invoked for each spatial cell at the end of each relevant primary or secondary emission segment. Based on the specified radiation field, if needed, the function updates any values in the specific material state for this cell and medium component that may inform the local emission and/or extinction properties of the material. The function returns the update status as described for the UpdateStatus class.

Reimplemented from MaterialMix.

The documentation for this class was generated from the following file:

AbsorptionOnlyMaterialMixDecorator.hpp

Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Fragmented dust mixes

Limitations

Constructor & Destructor Documentation

◆ AbsorptionOnlyMaterialMixDecorator()

Member Function Documentation

◆ hasDynamicMediumState()

◆ hasExtraSpecificState()

◆ hasNegativeExtinction()

◆ hasPolarizedAbsorption()

◆ hasPolarizedScattering()

◆ hasResonantScattering()

◆ indicativeTemperature()

◆ initializeSpecificState()

◆ isSpecificStateConverged()

◆ mass()

◆ materialMix()

◆ materialType()

◆ numPopulations()

◆ offersInterface()

◆ opacityAbs()

◆ opacityExt()

◆ opacitySca()

◆ parameterInfo()

◆ populationBulkDensity()

◆ populationGrainType()

◆ populationMass()

◆ populationSizeDistribution()

◆ populationSizeRange()

◆ sectionAbs()

◆ sectionExt()

◆ sectionSca()

◆ specificStateVariableInfo()

◆ totalMass()

◆ updateSpecificState()
