#include <DiffuseIonizedGasMix.hpp>

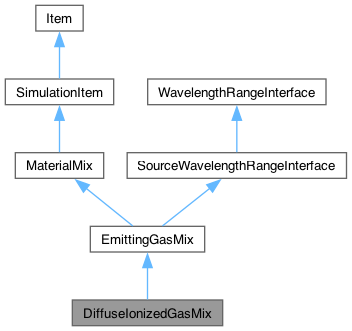

Inheritance diagram for DiffuseIonizedGasMix:

[legend]

Classes
struct	ReemissionData

Public Types
enum class	AbundanceMode : int { SolarScaled , PerCell }
Public Types inherited from MaterialMix
enum class	DynamicStateType { None , Primary , Secondary , PrimaryIfMergedIterations }
enum class	MaterialType { Dust , Electrons , Gas }

Public Member Functions
AbundanceMode	abundanceMode () const
double	defaultMetallicity () const
double	defaultTemperature () const
Array	emissionSpectrum (const MaterialState *state, const Array &Jv) const override
DisjointWavelengthGrid *	emissionWavelengthGrid () const override
bool	hasContinuumEmission () const override
DynamicStateType	hasDynamicMediumState () const override
bool	hasExtraSpecificState () const override
bool	hasLineEmission () const override
bool	hasScattering () const
bool	hasScatteringDispersion () const override
double	indicativeTemperature (const MaterialState *state, const Array &Jv) const override
void	initializeSpecificState (MaterialState *state, double metallicity, double temperature, const Array &params) const override
bool	isSpecificStateConverged (int numCells, int numUpdated, int numNotConverged, MaterialState currentAggregate, MaterialState previousAggregate) const override
Array	lineEmissionCenters () const override
Array	lineEmissionMasses () const override
Array	lineEmissionSpectrum (const MaterialState *state, const Array &Jv) const override
double	mass () const override
double	maxChangeInGlobalIonizedH () const
double	maxChangeInIonization () const
double	maxFractionNotConvergedCells () const
double	maxHydrogenDensity () const
double	opacityAbs (double lambda, const MaterialState state, const PhotonPacket pp) const override
double	opacityExt (double lambda, const MaterialState state, const PhotonPacket pp) const override
double	opacitySca (double lambda, const MaterialState state, const PhotonPacket pp) const override
vector< SnapshotParameter >	parameterInfo () const override
bool	peeloffScattering (double &I, double &Q, double &U, double &V, double &lambda, Direction bfkobs, Direction bfky, const MaterialState state, const PhotonPacket pp) const override
void	performScattering (double lambda, const MaterialState state, PhotonPacket pp) const override
double	reemissionFraction () const
double	sectionAbs (double lambda) const override
double	sectionExt (double lambda) const override
double	sectionSca (double lambda) const override
double	solarScalingC () const
double	solarScalingN () const
vector< StateVariable >	specificStateVariableInfo () const override
double	stabilityConvergenceThreshold () const
double	transitionBlendWidth () const
UpdateStatus	updateSpecificState (MaterialState *state, const Array &Jv) const override
bool	useCloudyOpacity () const
bool	useCloudyTemperature () const
Public Member Functions inherited from EmittingGasMix
MaterialType	materialType () const override
double	sourceWeight () const
double	wavelengthBias () const
WavelengthDistribution *	wavelengthBiasDistribution () const
Range	wavelengthRange () const override
Public Member Functions inherited from MaterialMix
virtual double	asymmpar (double lambda) const
virtual Array	emissivity (const Array &Jv) const
virtual bool	hasNegativeExtinction () const
virtual bool	hasPolarizedAbsorption () const
virtual bool	hasPolarizedEmission () const
virtual bool	hasPolarizedScattering () const
virtual bool	hasResonantScattering () const
virtual bool	hasStochasticDustEmission () const
bool	isDust () const
bool	isElectrons () const
bool	isGas () const
virtual bool	scatteringEmulatesSecondaryEmission () const
virtual const Array &	sectionsAbs (double lambda) const
virtual const Array &	sectionsAbspol (double lambda) const
virtual const Array &	thetaGrid () const
Public Member Functions inherited from SimulationItem
template<class T>
T *	find (bool setup=true) const
template<class T>
T *	interface (int levels=-999999, bool setup=true) const
virtual string	itemName () const
void	setup ()
string	typeAndName () const
Public Member Functions inherited from Item
	Item (const Item &)=delete
virtual	~Item ()
void	addChild (Item *child)
const vector< Item * > &	children () const
virtual void	clearItemListProperty (const PropertyDef *property)
void	destroyChild (Item *child)
virtual bool	getBoolProperty (const PropertyDef *property) const
virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const
virtual double	getDoubleProperty (const PropertyDef *property) const
virtual string	getEnumProperty (const PropertyDef *property) const
virtual int	getIntProperty (const PropertyDef *property) const
virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const
virtual Item *	getItemProperty (const PropertyDef *property) const
virtual string	getStringProperty (const PropertyDef *property) const
int	getUtilityProperty (string name) const
virtual void	insertIntoItemListProperty (const PropertyDef property, int index, Item item)
Item &	operator= (const Item &)=delete
Item *	parent () const
virtual void	removeFromItemListProperty (const PropertyDef *property, int index)
virtual void	setBoolProperty (const PropertyDef *property, bool value)
virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)
virtual void	setDoubleProperty (const PropertyDef *property, double value)
virtual void	setEnumProperty (const PropertyDef *property, string value)
virtual void	setIntProperty (const PropertyDef *property, int value)
virtual void	setItemProperty (const PropertyDef property, Item item)
virtual void	setStringProperty (const PropertyDef *property, string value)
void	setUtilityProperty (string name, int value)
virtual string	type () const
Public Member Functions inherited from WavelengthRangeInterface
virtual	~WavelengthRangeInterface ()

Protected Member Functions
	DiffuseIonizedGasMix ()
void	setupSelfBefore () override
Protected Member Functions inherited from EmittingGasMix
	EmittingGasMix ()
Protected Member Functions inherited from MaterialMix
	MaterialMix ()
Configuration *	config () const
Random *	random () const
void	setupSelfBefore () override
Protected Member Functions inherited from SimulationItem
	SimulationItem ()
virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const
virtual void	setupSelfAfter ()
Protected Member Functions inherited from Item
	Item ()
Protected Member Functions inherited from SourceWavelengthRangeInterface
	SourceWavelengthRangeInterface ()
Protected Member Functions inherited from WavelengthRangeInterface
	WavelengthRangeInterface ()

Private Types
using	BaseType
using	ItemType
enum	ReemissionChannel { Hydrogen , HeliumLyC , HeliumNpEv , HeliumTPC , HeliumLyA }
enum class	TableSelection { Standard , Transition , Blend }

Private Member Functions
void	bracketDeltaAxis (double value, const std::vector< double > &axis_values, const std::vector< int > &axis_deltaIds, int &deltaIdLo, int &deltaIdHi, double &w) const
void	buildPerCellAbundances (const MaterialState *state, double abund[8]) const
void	calculate5BinRatioParameters (const Array &Jv, double &logR2, double &logR3, double &logR4, double &logR5) const
void	calculateBinAverages (const Array &Jv, double *binAverages) const
double	calculateIonizationParameter (const Array &Jv, double nH) const
void	calculateReemissionProbabilities (const MaterialState *state, double lambda, ReemissionData &data) const
void	computeCellDeltas (const MaterialState *state, double &dN, double &dC) const
double	convertTotalDensityToHydrogenDensity (double n_total, double He_abundance) const
double	getBlendingWeight (double logU) const
double	getHeliumCrossSection (double frequency) const
double	getHydrogenCrossSection (double frequency) const
const ReemissionData &	getReemissionData (const MaterialState *state, double lambda) const
void	initializeOpacityWavelengthGrid () const
double	integrate (const std::vector< double > &x, const std::vector< double > &y) const
double	integrateLinearSpace (const std::vector< double > &x, const std::vector< double > &y) const
double	integrateLogSpace (const std::vector< double > &x, const std::vector< double > &y) const
double	interpolateOpacityFromState (double lambda, MaterialState *state, int opacityType) const
void	interpolateReemissionSpectrum (int spectrumType, double temperature, std::vector< double > &wavelengths, std::vector< double > &cumulativeDist) const
void	precomputeOpacityArrays (MaterialState *state, const Array &Jv) const
double	rydbergToWavelength (double energy_ryd) const
double	sampleFromTemperatureDependentSpectrum (int spectrumType, double temperature, Random *random) const
double	sampleHeliumLymanContinuum (double temperature) const
double	sampleHeliumTwoPhotonContinuum (double temperature) const
double	sampleHydrogenLymanContinuum (double temperature) const
int	selectReemissionChannel (const MaterialState state, double lambda, const PhotonPacket pp) const
TableSelection	selectTable (double logU) const
double	simpsonIntegration (const std::vector< double > &x, const std::vector< double > &y) const
double	trapezoidalIntegrationKahan (const std::vector< double > &x, const std::vector< double > &y) const
void	updateTemperatureFromStab (MaterialState *state) const

Private Attributes
AbundanceMode	_abundanceMode
std::vector< double >	_convergedFractionHistory
size_t	_convergenceHistorySize
std::vector< int >	_dCAxisDeltaIds
std::vector< double >	_dCAxisValues
double	_defaultMetallicity
double	_defaultTemperature
StoredTable< 1 >	_deltaCMapTable
int	_deltaIdCentre
StoredTable< 1 >	_deltaNMapTable
std::vector< int >	_dNAxisDeltaIds
std::vector< double >	_dNAxisValues
PhotoIonizationSolver	_emissionSolver
DisjointWavelengthGrid *	_emissionWavelengthGrid
int	_indexFirstIonFractionAgg
int	_indexFirstIonFractionDiag
int	_indexFirstMetalAbund
int	_indexFirstOpacityAbs
int	_indexFirstOpacityExt
int	_indexFirstOpacitySca
int	_indexHeliumAbundance
int	_indexHeNeutralFraction
int	_indexHNeutralFraction
int	_indexIonizationParameter
int	_indexLogR2
int	_indexLogR3
int	_indexLogR4
int	_indexLogR5
int	_indexNHIonized
double	_lambdaBin1
double	_lambdaBin2
double	_lambdaBin3
double	_lambdaBin4
double	_lambdaBin5
double	_lambdaBin6
double	_lambdaH
double	_lambdaHe
double	_lambdaHigh
double	_lambdaLow
Array	_lineCenters
Array	_lineMasses
double	_maxChangeInGlobalIonizedH
double	_maxChangeInIonization
double	_maxFractionNotConvergedCells
double	_maxHydrogenDensity
double	_maxNH_m3
double	_nHMinOpacity
int	_numLines
Array	_opacityWavelengthGrid
double	_reemissionFraction
StoredTable< 3 >	_reemissionSpectraTable
double	_solarScalingC
double	_solarScalingN
double	_stabDCmax
double	_stabDCmin
double	_stabDNmax
double	_stabDNmin
double	_stabilityConvergenceThreshold
StoredTable< 9 >	_standardOpacityTable
StoredTable< 8 >	_standardTemperatureTable
double	_transitionBlendWidth
double	_transitionLogUMax
double	_transitionLogUMin
StoredTable< 8 >	_transitionOpacityTable
StoredTable< 7 >	_transitionTemperatureTable
bool	_useCloudyOpacity
bool	_useCloudyTemperature

Static Private Attributes
static constexpr int	numReemissionChannels

Friends
class	ItemRegistry

Detailed Description

An instance of the DiffuseIonizedGasMix class represents diffuse ionized gas regions (HII regions, diffuse ionized gas, ionization fronts) for radiative transfer simulations. The module uses a hybrid approach that combines pre-computed Cloudy tables with an inline photoionization solver:

Applicability and naming note

The class name "DiffuseIonizedGasMix" reflects the module's original motivating application: modelling the diffuse ionised medium in cosmological galaxy simulations, where dense HII regions are often unresolved and handled by sub-grid prescriptions (Kapoor et al. 2026a; the multi-metallicity and per-cell-abundance extensions are presented in Kapoor et al. 2026b). The module itself is general-purpose: it operates on the local radiation field and gas density in each cell, agnostic to the specific astrophysical context.

The STAB tables extend to n_H = 10^5 cm^-3 and log U from -6.5 to +1.5, making the module applicable across the photoionised-plasma regime, from the diffuse ionised medium (n_H << 1 cm^-3) through individual HII regions, planetary nebulae, and dense star-forming clumps (n_H up to 10^5 cm^-3).

The STAB tables for temperature and opacity are pre-computed by running Cloudy on a grid of 5-bin step-function SEDs that are zero above 6 Ryd; the lookup parameters are the ionisation parameter log U (integrated from 1 Ryd over the full simulation wavelength grid) and four spectral-shape ratios R2-R5 covering 1.0-6.0 Ryd. The inline ionisation balance, by contrast, is solved by PhotoIonizationSolver directly from the full radiation field using Verner photoionisation cross-sections extending to keV. As a result, the ion balance accommodates any incident SED, but the STAB-based T and opacity ignore any flux above 6 Ryd. When the radiation-field wavelength grid extends beyond 6 Ryd and the incident SED carries significant flux there (e.g. AGN power-law spectra into X-rays), the T and opacity lookups become approximate; the size of the bias scales with the fraction of ionising flux that sits in that regime.

Temperature and opacity are determined from pre-computed STAB tables based on the ionization parameter (log U), a 5-bin spectral characterization (R2-R5), metallicity, and gas density.
Ionization balance is solved every iteration by the inline PhotoIonizationSolver at the STAB-derived temperature, yielding ion fractions for all tracked species (H, He, C, N, O, Ne, Mg, Si, S, Fe) and the electron density. Key ion fractions (x_HII, x_NII, x_OI, x_OII, x_OIII, x_SII) and n_e are stored as custom state variables for diagnostics.
Emission is computed from the converged radiation field, temperature, and ion fractions: NebularLineEmission computes line luminosities (hydrogen recombination lines from Storey & Hummer 1995 Case B coefficients; metal forbidden lines from CHIANTI collisional excitation rates) and NebularContinuumEmission computes the nebular continuum (free-bound, free-free, two-photon).
Diffuse reemission of absorbed ionizing photons follows Wood, Mathis & Ercolano (2004), with pre-tabulated temperature-dependent spectra for H/He Lyman continuum and He two-photon.

5-Bin Radiation Field Characterization

The ionizing radiation field is characterized using 5 energy bins:

Bin 1: 1.0 - 1.8 Ryd (912 - 506 A)
Bin 2: 1.8 - 2.58 Ryd (506 - 353 A)
Bin 3: 2.58 - 3.52 Ryd (353 - 259 A)
Bin 4: 3.52 - 4.0 Ryd (259 - 228 A)
Bin 5: 4.0 - 6.0 Ryd (228 - 152 A)

The spectral shape is described by four ratios relative to the first bin: R2 = J2/J1, R3 = J3/J1, R4 = J4/J1, R5 = J5/J1

Dual-Table System

Separate STAB tables for temperature and opacity optimize accuracy across different ionization regimes:

Standard Table: log U sampling (-4.0, -3.3, -2.6, -2.0, -1.3, -0.6, 0.1, 0.8, 1.5) for general ISM (log U >= -4)
Transition Table: log U sampling (-6.5, -6.1, -5.7, -5.2, -4.8, -4.4, -4.0) for ionization fronts (log U <= -4), capturing radiation hardening at nebular edges. The transition table uses broader shape-ratio ranges to capture the harder spectra near ionization fronts.

The appropriate table is automatically selected based on log U, with smooth blending in overlap regions.

Required Input

The input model must provide spatial distributions of:

Number density
Metallicity

STAB Table Structure

Temperature: 7D (Z, n_H, logU, log10(R2), log10(R3), log10(R4), log10(R5))
Opacity: 9D (wavelength, logU, log10(R2), log10(R3), log10(R4), log10(R5), Z, n_H, index)
Reemission spectra: 3D (spectrumType, T, wavelength) -> cumulative probability

Convergence

Convergence of the primary emission iterations is governed by three criteria. The per-cell criterion OR the plateau criterion must pass, AND the global criterion must pass:

Per-cell: each cell's relative change in temperature |delta T|/T and ionization parameter |delta logU|/|logU| are compared to maxChangeInIonization. A cell is "not converged" if either exceeds the threshold. The fraction of not-converged cells must be below maxFractionNotConvergedCells.
Plateau: the converged cell fraction is tracked over the last 3 iterations. If the change between consecutive values is below stabilityConvergenceThreshold (a fraction, displayed as percent in the log), convergence is declared even if the per-cell criterion is not met. This handles cases where Monte Carlo noise prevents the per-cell fraction from reaching the target.
Global: the relative change |delta sum(nHp*V)| / sum(nHp*V) in total ionized hydrogen must be below maxChangeInGlobalIonizedH. This prevents false convergence when trivially-neutral cells dominate the per-cell count while the ionization structure is still evolving.

All threshold properties are specified as fractions (0-1); log output displays percentages.

Density Ceiling

If maxHydrogenDensity is set to a positive value, the hydrogen number density n_H is clamped to that ceiling (in cm^-3) at the start of each cell update, before it is used anywhere: ionization parameter (logU), ionization fractions, temperature/opacity STAB lookups, and emission. This ensures self-consistency across all calculations. The default value is 10^5 cm^-3, matching the upper edge of the stab density axis; setting it to 0 disables the ceiling.

For opacity, cells below the minimum STAB table density are linearly scaled (opacity proportional to n). Cells above the maximum table density use StoredTable clamping.

Abundances and gas-phase depletion

The metallicity and per-cell element abundances supplied to this mix are interpreted as total values, including atoms that are locked up in dust. The temperature and opacity tables shipped with this mix were generated by Cloudy runs in which a fraction of the heavy elements was placed in the dust phase following the recipe of Gunasekera et al. (2023), based on the Jenkins (2009) depletion pattern at F* = 0.5 with no depletion applied to sulphur. The line-emission and ionization-balance step inside this mix applies that same gas-phase fraction to the abundance vector before it is used, so the analytical step is consistent with the physics in the tables. Inputs must therefore be total abundances; subtracting dust before passing them in would apply the depletion twice.

The abundanceMode enum selects how metal and helium abundances are handed to the analytical PIO/emission solver: SolarScaled uses the same prescription the stabs were built with (solar pattern * Zfrac * g(dN,dC) for metals, Gutkin Y(Z) for helium), so emission is fully self-consistent with the tabulated T and kappa. PerCell uses the snapshot's abundances in the emission calculation via 9 imported columns (8 metals + He); the stab T/kappa stay on the Gutkin baseline.

When an item of this type is used, the names provided by the conditional value expression "CustomMediumState,DynamicState" are inserted into the name sets used for evaluating Boolean expressions.

Member Enumeration Documentation

◆ AbundanceMode

enum class DiffuseIonizedGasMix::AbundanceMode : int

strong

Selects how metal and helium abundances are handed to the analytical emission solver. See the class docstring section "Abundances and gas-phase depletion" for the full description.

SolarScaled : "solar pattern scaled by metallicity".

PerCell : "per-cell abundances imported from the snapshot".

Constructor & Destructor Documentation

◆ DiffuseIonizedGasMix()

DiffuseIonizedGasMix::DiffuseIonizedGasMix ( )

inlineprotected

Default constructor for concrete Item subclass DiffuseIonizedGasMix: "a diffuse ionized gas mix including emission".

Member Function Documentation

◆ abundanceMode()

AbundanceMode DiffuseIonizedGasMix::abundanceMode ( ) const

inline

This function returns the value of the discoverable AbundanceMode enumeration property abundanceMode: "abundance specification for the emission solver".

The default value for this property is given by the conditional value expression "SolarScaled".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ defaultMetallicity()

double DiffuseIonizedGasMix::defaultMetallicity ( ) const

inline

This function returns the value of the discoverable double property defaultMetallicity: "the default metallicity of the gas".

The minimum value for this property is "]0".

The maximum value for this property is "0.2]".

The default value for this property is given by the conditional value expression "0.02".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ defaultTemperature()

double DiffuseIonizedGasMix::defaultTemperature ( ) const

inline

This function returns the value of the discoverable double property defaultTemperature: "the fixed temperature of the gas".

This property represents a physical quantity of type "temperature".

The minimum value for this property is "[1000".

The maximum value for this property is "20000]".

The default value for this property is given by the conditional value expression "10000".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ emissionSpectrum()

Array DiffuseIonizedGasMix::emissionSpectrum	(	const MaterialState *	state,
		const Array &	Jv ) const

overridevirtual

Returns the continuum emission spectrum (free-bound, free-free, two-photon).

Reimplemented from MaterialMix.

◆ emissionWavelengthGrid()

DisjointWavelengthGrid * DiffuseIonizedGasMix::emissionWavelengthGrid ( ) const

overridevirtual

Returns a wavelength grid for the emission spectrum

Reimplemented from MaterialMix.

◆ hasContinuumEmission()

bool DiffuseIonizedGasMix::hasContinuumEmission ( ) const

overridevirtual

Returns true because emission is handled as continuous spectrum

Reimplemented from MaterialMix.

◆ hasDynamicMediumState()

DynamicStateType DiffuseIonizedGasMix::hasDynamicMediumState ( ) const

overridevirtual

Returns DynamicStateType::Primary, indicating that this material mix has a dynamic medium state with updates that are considered to affect primary emission.

Reimplemented from MaterialMix.

◆ hasExtraSpecificState()

bool DiffuseIonizedGasMix::hasExtraSpecificState ( ) const

overridevirtual

Returns true, indicating that this material mix has state variables beyond number density

Reimplemented from MaterialMix.

◆ hasLineEmission()

bool DiffuseIonizedGasMix::hasLineEmission ( ) const

overridevirtual

Returns true: DIG emits discrete emission lines computed from PIO-style ion balance.

Reimplemented from MaterialMix.

◆ hasScattering()

bool DiffuseIonizedGasMix::hasScattering ( ) const

Returns true if this material mix supports scattering (for diffuse reemission).

◆ hasScatteringDispersion()

bool DiffuseIonizedGasMix::hasScatteringDispersion ( ) const

overridevirtual

This function returns true when diffuse reemission is turned on.

Reimplemented from MaterialMix.

◆ indicativeTemperature()

double DiffuseIonizedGasMix::indicativeTemperature	(	const MaterialState *	state,
		const Array &	Jv ) const

overridevirtual

Returns the fixed temperature used for this material.

Reimplemented from MaterialMix.

◆ initializeSpecificState()

void DiffuseIonizedGasMix::initializeSpecificState	(	MaterialState *	state,
		double	metallicity,
		double	temperature,
		const Array &	params ) const

overridevirtual

Initializes specific state variables from imported or default values.

Reimplemented from MaterialMix.

◆ isSpecificStateConverged()

bool DiffuseIonizedGasMix::isSpecificStateConverged	(	int	numCells,
		int	numUpdated,
		int	numNotConverged,
		MaterialState *	currentAggregate,
		MaterialState *	previousAggregate ) const

overridevirtual

Determines if the medium state has converged based on ionization fractions and parameters.

Reimplemented from MaterialMix.

◆ lineEmissionCenters()

Array DiffuseIonizedGasMix::lineEmissionCenters ( ) const

overridevirtual

Returns the rest-frame wavelength centers of all emission lines.

Reimplemented from MaterialMix.

◆ lineEmissionMasses()

Array DiffuseIonizedGasMix::lineEmissionMasses ( ) const

overridevirtual

Returns the particle masses for thermal line broadening.

Reimplemented from MaterialMix.

◆ lineEmissionSpectrum()

Array DiffuseIonizedGasMix::lineEmissionSpectrum	(	const MaterialState *	state,
		const Array &	Jv ) const

overridevirtual

Returns the per-line luminosities [W] computed from T, ne, and ion fractions.

Reimplemented from MaterialMix.

◆ mass()

double DiffuseIonizedGasMix::mass ( ) const

overridevirtual

Returns the mean mass of a gas particle (weighted by composition).

Implements MaterialMix.

◆ maxChangeInGlobalIonizedH()

double DiffuseIonizedGasMix::maxChangeInGlobalIonizedH ( ) const

inline

This function returns the value of the discoverable double property maxChangeInGlobalIonizedH: "convergence threshold on the total ionized-H change".

The minimum value for this property is "[0".

The maximum value for this property is "1]".

The default value for this property is given by the conditional value expression "0.001".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ maxChangeInIonization()

double DiffuseIonizedGasMix::maxChangeInIonization ( ) const

inline

This function returns the value of the discoverable double property maxChangeInIonization: "maximum relative change in T or logU per cell for convergence".

The minimum value for this property is "[0".

The maximum value for this property is "1]".

The default value for this property is given by the conditional value expression "0.01".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ maxFractionNotConvergedCells()

double DiffuseIonizedGasMix::maxFractionNotConvergedCells ( ) const

inline

This function returns the value of the discoverable double property maxFractionNotConvergedCells: "maximum fraction of cells allowed to not converge".

The minimum value for this property is "[0".

The maximum value for this property is "1]".

The default value for this property is given by the conditional value expression "0.1".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ maxHydrogenDensity()

double DiffuseIonizedGasMix::maxHydrogenDensity ( ) const

inline

This function returns the value of the discoverable double property maxHydrogenDensity: "maximum hydrogen number density ceiling in cm^-3 (0 means no ceiling)".

The minimum value for this property is "[0".

The default value for this property is given by the conditional value expression "100000".

◆ opacityAbs()

double DiffuseIonizedGasMix::opacityAbs	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp ) const

overridevirtual

Returns the absorption opacity based on gas neutral fractions.

Implements MaterialMix.

◆ opacityExt()

double DiffuseIonizedGasMix::opacityExt	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp ) const

overridevirtual

Returns the extinction opacity (equals absorption for this material).

Implements MaterialMix.

◆ opacitySca()

double DiffuseIonizedGasMix::opacitySca	(	double	lambda,
		const MaterialState *	state,
		const PhotonPacket *	pp ) const

overridevirtual

Returns scattering opacity for diffuse reemission if enabled.

Implements MaterialMix.

◆ parameterInfo()

vector< SnapshotParameter > DiffuseIonizedGasMix::parameterInfo ( ) const

overridevirtual

Returns descriptors for snapshot-import columns required by this material mix. When abundanceMode=PerCell, requests 9 columns: 8 metal n_X/n_H ratios (C, N, O, Ne, Mg, Si, S, Fe) followed by n_He/n_H. SolarScaled requires no columns.

Reimplemented from MaterialMix.

◆ peeloffScattering()

bool DiffuseIonizedGasMix::peeloffScattering	(	double &	I,
		double &	Q,
		double &	U,
		double &	V,
		double &	lambda,
		Direction	bfkobs,
		Direction	bfky,
		const MaterialState *	state,
		const PhotonPacket *	pp ) const

overridevirtual

Performs peel-off scattering for diffuse reemission. Returns false: no fluorescence-as-secondary-emission.

Reimplemented from MaterialMix.

◆ performScattering()

void DiffuseIonizedGasMix::performScattering	(	double	lambda,
		const MaterialState *	state,
		PhotonPacket *	pp ) const

overridevirtual

Performs scattering event including possible diffuse reemission.

Reimplemented from MaterialMix.

◆ reemissionFraction()

double DiffuseIonizedGasMix::reemissionFraction ( ) const

inline

This function returns the value of the discoverable double property reemissionFraction: "fraction of the theoretical reemission probability that is realised".

The minimum value for this property is "[0".

The maximum value for this property is "1]".

The default value for this property is given by the conditional value expression "1.0".

This property is displayed only if the Boolean expression "Level3" evaluates to true after replacing the names by true or false depending on their presence.

◆ sectionAbs()

double DiffuseIonizedGasMix::sectionAbs ( double lambda ) const

overridevirtual

Returns a representative absorption cross section (in m2).

Implements MaterialMix.

◆ sectionExt()

double DiffuseIonizedGasMix::sectionExt ( double lambda ) const

overridevirtual

Returns the total extinction cross section (equals absorption for this material).

Implements MaterialMix.

◆ sectionSca()

double DiffuseIonizedGasMix::sectionSca ( double lambda ) const

overridevirtual

Returns the scattering cross section (zero for this material).

Implements MaterialMix.

◆ setupSelfBefore()

void DiffuseIonizedGasMix::setupSelfBefore ( )

overrideprotectedvirtual

This function opens the STAB tables for temperature and opacity (Standard and Transition), loads the reemission spectra table if diffuse reemission is enabled, initializes wavelength boundaries for the 5-bin calculation, builds the continuum emission wavelength grid, and initializes the PhotoIonizationSolver used for computing ion fractions at emission time.

Reimplemented from SimulationItem.

◆ solarScalingC()

double DiffuseIonizedGasMix::solarScalingC ( ) const

inline

This function returns the value of the discoverable double property solarScalingC: "carbon scaling factor on solar pattern * Zfrac (SolarScaled mode)".

The minimum value for this property is "[0.1".

The maximum value for this property is "10.0]".

The default value for this property is given by the conditional value expression "1".

This property is relevant only if the Boolean expression "abundanceModeSolarScaled" evaluates to true after replacing the names by true or false depending on their presence.

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ solarScalingN()

double DiffuseIonizedGasMix::solarScalingN ( ) const

inline

This function returns the value of the discoverable double property solarScalingN: "nitrogen scaling factor on solar pattern * Zfrac (SolarScaled mode)".

The minimum value for this property is "[0.03162".

The maximum value for this property is "10.0]".

The default value for this property is given by the conditional value expression "1".

This property is relevant only if the Boolean expression "abundanceModeSolarScaled" evaluates to true after replacing the names by true or false depending on their presence.

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ specificStateVariableInfo()

vector< StateVariable > DiffuseIonizedGasMix::specificStateVariableInfo ( ) const

overridevirtual

Returns descriptors for state variables used by this material mix.

Implements MaterialMix.

◆ stabilityConvergenceThreshold()

double DiffuseIonizedGasMix::stabilityConvergenceThreshold ( ) const

inline

This function returns the value of the discoverable double property stabilityConvergenceThreshold: "convergence threshold on the converged-cell fraction".

The minimum value for this property is "[0".

The maximum value for this property is "1]".

The default value for this property is given by the conditional value expression "0.005".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ transitionBlendWidth()

double DiffuseIonizedGasMix::transitionBlendWidth ( ) const

inline

This function returns the value of the discoverable double property transitionBlendWidth: "blending width in logU between the standard and transition tables".

The minimum value for this property is "[0".

The maximum value for this property is "1.5]".

The default value for this property is given by the conditional value expression "0.3".

This property is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

◆ updateSpecificState()

UpdateStatus DiffuseIonizedGasMix::updateSpecificState	(	MaterialState *	state,
		const Array &	Jv ) const

overridevirtual

Updates ionization fractions, ionization parameter and 4-bin parameters based on the radiation field.

Reimplemented from MaterialMix.

◆ useCloudyOpacity()

bool DiffuseIonizedGasMix::useCloudyOpacity ( ) const

inline

This function returns the value of the discoverable Boolean property useCloudyOpacity: "use the Cloudy-tabulated opacity (disabling falls back to Verner bound-free opacity)".

The default value for this property is given by the conditional value expression "true".

This property is displayed only if the Boolean expression "Level3" evaluates to true after replacing the names by true or false depending on their presence.

◆ useCloudyTemperature()

bool DiffuseIonizedGasMix::useCloudyTemperature ( ) const

inline

This function returns the value of the discoverable Boolean property useCloudyTemperature: "use the Cloudy-tabulated temperature (disabling keeps T fixed at defaultTemperature)".

The default value for this property is given by the conditional value expression "true".

This property is displayed only if the Boolean expression "Level3" evaluates to true after replacing the names by true or false depending on their presence.

The documentation for this class was generated from the following file:

DiffuseIonizedGasMix.hpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ AbundanceMode

Constructor & Destructor Documentation

◆ DiffuseIonizedGasMix()

Member Function Documentation

◆ abundanceMode()

◆ defaultMetallicity()

◆ defaultTemperature()

◆ emissionSpectrum()

◆ emissionWavelengthGrid()

◆ hasContinuumEmission()

◆ hasDynamicMediumState()

◆ hasExtraSpecificState()

◆ hasLineEmission()

◆ hasScattering()

◆ hasScatteringDispersion()

◆ indicativeTemperature()

◆ initializeSpecificState()

◆ isSpecificStateConverged()

◆ lineEmissionCenters()

◆ lineEmissionMasses()

◆ lineEmissionSpectrum()

◆ mass()

◆ maxChangeInGlobalIonizedH()

◆ maxChangeInIonization()

◆ maxFractionNotConvergedCells()

◆ maxHydrogenDensity()

◆ opacityAbs()

◆ opacityExt()

◆ opacitySca()

◆ parameterInfo()

◆ peeloffScattering()

◆ performScattering()

◆ reemissionFraction()

◆ sectionAbs()

◆ sectionExt()

◆ sectionSca()

◆ setupSelfBefore()

◆ solarScalingC()

◆ solarScalingN()

◆ specificStateVariableInfo()

◆ stabilityConvergenceThreshold()

◆ transitionBlendWidth()

◆ updateSpecificState()

◆ useCloudyOpacity()

◆ useCloudyTemperature()
