SphericalCellGeometry Class Reference

#include <SphericalCellGeometry.hpp>

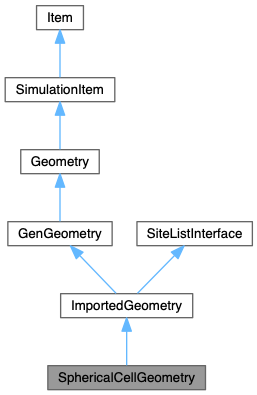

Inheritance diagram for SphericalCellGeometry:

Public Types
enum class	AutoRevolveType : int { None , Inclination , Azimuth , InclinationAndAzimuth }
enum class	MassType : int { MassDensity , Mass , NumberDensity , Number }

Public Member Functions
AutoRevolveType	autoRevolve () const
MassType	massType () const
int	numAzimuthRevolveBins () const
int	numInclinationRevolveBins () const
Public Member Functions inherited from ImportedGeometry
double	density (Position bfr) const override
string	filename () const
Position	generatePosition () const override
bool	importMetallicity () const
bool	importTemperature () const
double	maxTemperature () const
int	numSites () const override
double	SigmaX () const override
double	SigmaY () const override
double	SigmaZ () const override
Position	sitePosition (int index) const override
string	useColumns () const
Public Member Functions inherited from GenGeometry
int	dimension () const override
virtual double	density (Position bfr) const =0
virtual int	dimension () const =0
virtual Position	generatePosition () const =0
virtual double	SigmaX () const =0
virtual double	SigmaY () const =0
virtual double	SigmaZ () const =0
Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const
template<class T >
T *	interface (int levels=-999999, bool setup=true) const
virtual string	itemName () const
void	setup ()
string	typeAndName () const
Public Member Functions inherited from Item
	Item (const Item &)=delete
virtual	~Item ()
void	addChild (Item *child)
const vector< Item * > &	children () const
virtual void	clearItemListProperty (const PropertyDef *property)
void	destroyChild (Item *child)
virtual bool	getBoolProperty (const PropertyDef *property) const
virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const
virtual double	getDoubleProperty (const PropertyDef *property) const
virtual string	getEnumProperty (const PropertyDef *property) const
virtual int	getIntProperty (const PropertyDef *property) const
virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const
virtual Item *	getItemProperty (const PropertyDef *property) const
virtual string	getStringProperty (const PropertyDef *property) const
int	getUtilityProperty (string name) const
virtual void	insertIntoItemListProperty (const PropertyDef *property, int index, Item *item)
Item &	operator= (const Item &)=delete
Item *	parent () const
virtual void	removeFromItemListProperty (const PropertyDef *property, int index)
virtual void	setBoolProperty (const PropertyDef *property, bool value)
virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)
virtual void	setDoubleProperty (const PropertyDef *property, double value)
virtual void	setEnumProperty (const PropertyDef *property, string value)
virtual void	setIntProperty (const PropertyDef *property, int value)
virtual void	setItemProperty (const PropertyDef *property, Item *item)
virtual void	setStringProperty (const PropertyDef *property, string value)
void	setUtilityProperty (string name, int value)
virtual string	type () const
Public Member Functions inherited from SiteListInterface
virtual	~SiteListInterface ()
virtual int	numSites () const =0
virtual Position	sitePosition (int index) const =0

Protected Member Functions
	SphericalCellGeometry ()
Snapshot *	createAndOpenSnapshot () override
Protected Member Functions inherited from ImportedGeometry
	ImportedGeometry ()
	~ImportedGeometry ()
virtual Snapshot *	createAndOpenSnapshot ()=0
void	setupSelfAfter () override
Protected Member Functions inherited from GenGeometry
	GenGeometry ()
Protected Member Functions inherited from Geometry
	Geometry ()
Random *	random () const
void	setupSelfBefore () override
Protected Member Functions inherited from SimulationItem
	SimulationItem ()
virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const
virtual void	setupSelfAfter ()
virtual void	setupSelfBefore ()
Protected Member Functions inherited from Item
	Item ()
Protected Member Functions inherited from SiteListInterface
	SiteListInterface ()

Private Types
using	BaseType = ImportedGeometry
using	ItemType = SphericalCellGeometry

Private Attributes
AutoRevolveType	_autoRevolve
MassType	_massType
int	_numAzimuthRevolveBins
int	_numInclinationRevolveBins

Friends
class	ItemRegistry

Detailed Description

A SphericalCellGeometry instance represents a 3D geometry with a spatial density distribution described by a list of spherical cells lined up with the spherical coordinate axes; refer to the SphericalCellSnapshot class for more information. The cell data is usually extracted from a cosmological simulation snapshot, and it must be provided in a column text file formatted as described below. The total mass in the geometry is normalized to unity after importing the data.

Refer to the description of the TextInFile class for information on overall formatting and on how to include header lines specifying the units for each column in the input file. In case the input file has no unit specifications, the default units mentioned below are used instead. The number of columns in the input file depends on the options configured by the user for this SphericalCellGeometry instance:

$$r_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{p}\mathrm{c}){\theta }_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{d}\mathrm{e}\mathrm{g}){\phi }_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{d}\mathrm{e}\mathrm{g})r_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{p}\mathrm{c}){\theta }_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{d}\mathrm{e}\mathrm{g}){\phi }_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{d}\mathrm{e}\mathrm{g})\{\rho ({\text{M}}_{\odot }{\text{pc}}^{-3})|M({\text{M}}_{\odot })|n({\text{cm}}^{-3})|N(1)\}[Z(1)][T(\mathrm{K})]$$

The first six columns specify the coordinates of the bordering surfaces of the cell. The autoRevolve property controls a feature to automatically revolve 1D or 2D data to 3D. See the SphericalCellSnapshot class for more information.

Depending on the value of the massType option, the seventh column lists the average mass density $\rho$, the integrated mass $M$, the average number density $n$, or the integrated number density $N$ for the cell. The precise units for this field are irrelevant because the total mass in the geometry will be normalized to unity after importing the data. However, the import procedure still insists on knowing the units.

If the importMetallicity option is enabled, the next column specifies a "metallicity" fraction, which in this context is simply multiplied with the mass/density column to obtain the actual mass/density of the cell. If the importTemperature option is enabled, the next column specifies a temperature. If this temperature is higher than the maximum configured temperature, the mass and density of the cell are set to zero, regardless of the mass or density specified in the seventh column. If the importTemperature option is disabled, or the maximum temperature value is set to zero, such a cutoff is not applied.

This item type is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

Member Enumeration Documentation

AutoRevolveType

enum class SphericalCellGeometry::AutoRevolveType : int

strong

The enumeration type for selecting the auto-revolve option.

None : "no auto-revolve" .

Inclination : "auto-revolve inclination" .

Azimuth : "auto-revolve azimuth" .

InclinationAndAzimuth : "auto-revolve both inclination and azimuth" .

MassType

enum class SphericalCellGeometry::MassType : int

strong

The enumeration type indicating the type of mass quantity to be imported.

MassDensity : "mass density" .

Mass : "mass (volume-integrated mass density)" .

NumberDensity : "number density" .

Number : "number (volume-integrated number density)" .

Constructor & Destructor Documentation

SphericalCellGeometry()

SphericalCellGeometry::SphericalCellGeometry ( )

inlineprotected

Default constructor for concrete Item subclass SphericalCellGeometry : "a geometry imported from spherical cell data" .

Member Function Documentation

autoRevolve()

SphericalCellGeometry::autoRevolve ( ) const

inline

This function returns the value of the discoverable AutoRevolveType enumeration property autoRevolve : "automatically revolve 1D or 2D data to a 3D model" .

The default value for this property is given by the conditional value expression "None" .

createAndOpenSnapshot()

Snapshot * SphericalCellGeometry::createAndOpenSnapshot ( )

overrideprotectedvirtual

This function constructs a new SphericalCellGeometry object, calls its open() function, configures it to import a mass or density column, and finally returns a pointer to the object. Ownership of the Snapshot object is transferred to the caller.

Implements ImportedGeometry.

massType()

SphericalCellGeometry::massType ( ) const

inline

This function returns the value of the discoverable MassType enumeration property massType : "the type of mass quantity to be imported" .

The default value for this property is given by the conditional value expression "MassDensity" .

numAzimuthRevolveBins()

SphericalCellGeometry::numAzimuthRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numAzimuthRevolveBins : "the number of azimuth bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveAzimuth|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

numInclinationRevolveBins()

SphericalCellGeometry::numInclinationRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numInclinationRevolveBins : "the number of inclination bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveInclination|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

---

The documentation for this class was generated from the following file:

• SphericalCellGeometry.hpp
