#include <SphericalCellMedium.hpp>

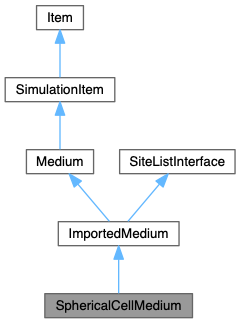

Inheritance diagram for SphericalCellMedium:

[legend]

Public Types
enum class	AutoRevolveType : int { None , Inclination , Azimuth , InclinationAndAzimuth }

enum class	MassType : int { MassDensity , Mass , NumberDensity , Number }

Public Member Functions
AutoRevolveType	autoRevolve () const

MassType	massType () const

int	numAzimuthRevolveBins () const

int	numInclinationRevolveBins () const

Public Member Functions inherited from ImportedMedium
Vec	bulkVelocity (Position bfr) const override

int	dimension () const override

string	filename () const

Position	generatePosition () const override

bool	hasMagneticField () const override

bool	hasMetallicity () const override

bool	hasParameters () const override

bool	hasTemperature () const override

bool	hasVariableMix () const override

bool	hasVelocity () const override

bool	importMagneticField () const

bool	importMetallicity () const

bool	importTemperature () const

bool	importVariableMixParams () const

bool	importVelocity () const

Vec	magneticField (Position bfr) const override

double	mass () const override

double	massDensity (Position bfr) const override

double	massFraction () const

MaterialMix *	materialMix () const

MaterialMixFamily *	materialMixFamily () const

double	maxTemperature () const

double	metallicity (Position bfr) const override

const MaterialMix *	mix () const override

const MaterialMix *	mix (Position bfr) const override

double	number () const override

double	numberDensity (Position bfr) const override

int	numSites () const override

double	opticalDepthX (double lambda) const override

double	opticalDepthY (double lambda) const override

double	opticalDepthZ (double lambda) const override

void	parameters (Position bfr, Array &params) const override

Position	sitePosition (int index) const override

const Snapshot *	snapshot () const

double	temperature (Position bfr) const override

string	useColumns () const

virtual Vec	bulkVelocity (Position bfr) const =0

virtual int	dimension () const =0

virtual Position	generatePosition () const =0

virtual bool	hasMagneticField () const =0

virtual bool	hasMetallicity () const =0

virtual bool	hasParameters () const =0

virtual bool	hasTemperature () const =0

virtual bool	hasVariableMix () const =0

virtual bool	hasVelocity () const =0

virtual Vec	magneticField (Position bfr) const =0

virtual double	mass () const =0

virtual double	massDensity (Position bfr) const =0

virtual double	metallicity (Position bfr) const =0

virtual const MaterialMix *	mix () const =0

virtual const MaterialMix *	mix (Position bfr) const =0

virtual double	number () const =0

virtual double	numberDensity (Position bfr) const =0

virtual double	opticalDepthX (double lambda) const =0

virtual double	opticalDepthY (double lambda) const =0

virtual double	opticalDepthZ (double lambda) const =0

virtual void	parameters (Position bfr, Array &params) const =0

virtual double	temperature (Position bfr) const =0

Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const

template<class T >
T *	interface (int levels=-999999, bool setup=true) const

virtual string	itemName () const

void	setup ()

string	typeAndName () const

Public Member Functions inherited from Item
	Item (const Item &)=delete

virtual	~Item ()

void	addChild (Item *child)

const vector< Item * > &	children () const

virtual void	clearItemListProperty (const PropertyDef *property)

void	destroyChild (Item *child)

virtual bool	getBoolProperty (const PropertyDef *property) const

virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const

virtual double	getDoubleProperty (const PropertyDef *property) const

virtual string	getEnumProperty (const PropertyDef *property) const

virtual int	getIntProperty (const PropertyDef *property) const

virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const

virtual Item *	getItemProperty (const PropertyDef *property) const

virtual string	getStringProperty (const PropertyDef *property) const

int	getUtilityProperty (string name) const

virtual void	insertIntoItemListProperty (const PropertyDef property, int index, Item item)

Item &	operator= (const Item &)=delete

Item *	parent () const

virtual void	removeFromItemListProperty (const PropertyDef *property, int index)

virtual void	setBoolProperty (const PropertyDef *property, bool value)

virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)

virtual void	setDoubleProperty (const PropertyDef *property, double value)

virtual void	setEnumProperty (const PropertyDef *property, string value)

virtual void	setIntProperty (const PropertyDef *property, int value)

virtual void	setItemProperty (const PropertyDef property, Item item)

virtual void	setStringProperty (const PropertyDef *property, string value)

void	setUtilityProperty (string name, int value)

virtual string	type () const

Public Member Functions inherited from SiteListInterface
virtual	~SiteListInterface ()

virtual int	numSites () const =0

virtual Position	sitePosition (int index) const =0

Protected Member Functions
	SphericalCellMedium ()

Snapshot *	createAndOpenSnapshot () override

Protected Member Functions inherited from ImportedMedium
	ImportedMedium ()

	~ImportedMedium ()

virtual Snapshot *	createAndOpenSnapshot ()=0

void	setupSelfAfter () override

Protected Member Functions inherited from Medium
	Medium ()

Protected Member Functions inherited from SimulationItem
	SimulationItem ()

virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const

virtual void	setupSelfAfter ()

virtual void	setupSelfBefore ()

Protected Member Functions inherited from Item
	Item ()

Protected Member Functions inherited from SiteListInterface
	SiteListInterface ()

Private Types
using	BaseType = ImportedMedium

using	ItemType = SphericalCellMedium

Private Attributes
AutoRevolveType	_autoRevolve

MassType	_massType

int	_numAzimuthRevolveBins

int	_numInclinationRevolveBins

Friends
class	ItemRegistry

Detailed Description

A SphericalCellMedium instance represents a transfer medium with a spatial density distribution (and, optionally, other properties) described by a list of spherical cells lined up with the spherical coordinate axes; refer to the SphericalCellSnapshot class for more information. The cell data is usually extracted from a cosmological simulation snapshot, and it must be provided in a column text file formatted as described below.

Refer to the description of the TextInFile class for information on overall formatting and on how to include header lines specifying the units for each column in the input file. In case the input file has no unit specifications, the default units mentioned below are used instead. The number of columns expected in the input file depends on the options configured by the user for this SphericalCellMedium instance:

$r_{m i n} (p c) θ_{m i n} (d e g) φ_{m i n} (d e g) r_{m a x} (p c) θ_{m a x} (d e g) φ_{m a x} (d e g) {ρ (M_{⊙} {pc}^{- 3}) | M (M_{⊙}) | n ({cm}^{- 3}) | N (1)} [Z (1)] [T (K)]$

$[v_{x} (k m / s) v_{y} (k m / s) v_{z} (k m / s)] [B_{x} (μ G) B_{y} (μ G) B_{z} (μ G)] [\dots mix family params \dots]$

The first six columns specify the coordinates of the bordering surfaces of the cell. The autoRevolve property controls a feature to automatically revolve 1D or 2D data to 3D. See the SphericalCellSnapshot class for more information.

Depending on the value of the massType option, the seventh column lists the average mass density $ρ$ , the integrated mass $M$ , the average number density $n$ , or the integrated number density $N$ for the cell.

If the importMetallicity option is enabled, the next column specifies a "metallicity" fraction, which is multiplied with the mass/density column to obtain the actual mass/density of the cell. If the importTemperature option is enabled, the next column specifies a temperature. If this temperature is higher than the maximum configured temperature, the mass and density of the cell are set to zero, regardless of the mass or density specified in the seventh column. If the importTemperature option is disabled, or the maximum temperature value is set to zero, such a cutoff is not applied.

If both the importMetallicity and importTemperature options are enabled, this leads to the following expression for the mass of an imported particle:

$M_{i m p o r t e d} = {\begin{cases} f_{m a s s} Z M & i f T < T_{m a x} o r T_{m a x} = 0 \\ 0 & o t h e r w i s e \end{cases}$

If the importVelocity option is enabled, the subsequent three columns specify the $v_{R}$ , $v_{φ}$ , $v_{z}$ components of the bulk velocity, in spherical coordinates, for the material represented by the cell.

If the importMagneticField option is enabled, the subsequent three columns specify the $B_{R}$ , $B_{φ}$ , $B_{z}$ magnetic field vector components for the cell, in spherical coordinates.

Finally, if the importVariableMixParams option is enabled, the remaining columns specify the parameters used by the configured material mix family to select a particular material mix for the cell.

This item type is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

Member Enumeration Documentation

◆ AutoRevolveType

enum class SphericalCellMedium::AutoRevolveType : int

strong

The enumeration type for selecting the auto-revolve option.

None : "no auto-revolve" .

Inclination : "auto-revolve inclination" .

Azimuth : "auto-revolve azimuth" .

InclinationAndAzimuth : "auto-revolve both inclination and azimuth" .

◆ MassType

enum class SphericalCellMedium::MassType : int

strong

The enumeration type indicating the type of mass quantity to be imported.

MassDensity : "mass density" .

Mass : "mass (volume-integrated)" .

NumberDensity : "number density" .

Number : "number (volume-integrated)" .

Constructor & Destructor Documentation

◆ SphericalCellMedium()

SphericalCellMedium::SphericalCellMedium ( )

inlineprotected

Default constructor for concrete Item subclass SphericalCellMedium : "a transfer medium imported from spherical cell data" .

Member Function Documentation

◆ autoRevolve()

SphericalCellMedium::autoRevolve ( ) const

inline

This function returns the value of the discoverable AutoRevolveType enumeration property autoRevolve : "automatically revolve 1D or 2D data to a 3D model" .

The default value for this property is given by the conditional value expression "None" .

◆ createAndOpenSnapshot()

Snapshot * SphericalCellMedium::createAndOpenSnapshot ( )

overrideprotectedvirtual

This function constructs a new SphericalCellSnapshot object, calls its open() function, configures it to import a mass or density column, and finally returns a pointer to the object. Ownership of the Snapshot object is transferred to the caller.

Implements ImportedMedium.

◆ massType()

SphericalCellMedium::massType ( ) const

inline

This function returns the value of the discoverable MassType enumeration property massType : "the type of mass quantity to be imported" .

The default value for this property is given by the conditional value expression "MassDensity" .

◆ numAzimuthRevolveBins()

SphericalCellMedium::numAzimuthRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numAzimuthRevolveBins : "the number of azimuth bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveAzimuth|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

◆ numInclinationRevolveBins()

SphericalCellMedium::numInclinationRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numInclinationRevolveBins : "the number of inclination bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveInclination|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

The documentation for this class was generated from the following file:

SphericalCellMedium.hpp
