SphericalCellSource Class Reference

#include <SphericalCellSource.hpp>

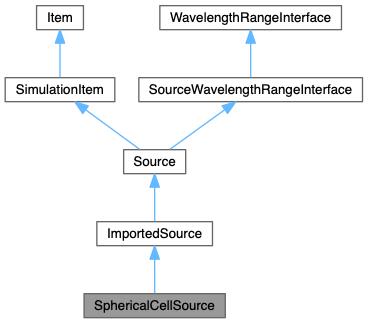

Inheritance diagram for SphericalCellSource:

Public Types
enum class	AutoRevolveType : int { None , Inclination , Azimuth , InclinationAndAzimuth }

Public Member Functions
AutoRevolveType	autoRevolve () const
int	numAzimuthRevolveBins () const
int	numInclinationRevolveBins () const
Public Member Functions inherited from ImportedSource
int	dimension () const override
string	filename () const
bool	hasVelocity () const override
bool	importBias () const
bool	importCurrentMass () const
bool	importVelocity () const
bool	importVelocityDispersion () const
void	launch (PhotonPacket *pp, size_t historyIndex, double L) const override
double	luminosity () const override
double	meanSpecificLuminosity (const Band *band, int m) const
double	meanSpecificLuminosity (Range wavelengthRange, int m) const
void	prepareForLaunch (double sourceBias, size_t firstIndex, size_t numIndices) override
SEDFamily *	sedFamily () const
const Snapshot *	snapshot () const
double	specificLuminosity (double wavelength) const override
double	specificLuminosity (double wavelength, int m) const
string	useColumns () const
Range	wavelengthRange () const override
Public Member Functions inherited from Source
virtual int	dimension () const =0
virtual bool	hasVelocity () const =0
virtual void	launch (PhotonPacket *pp, size_t historyIndex, double L) const =0
virtual double	luminosity () const =0
virtual void	prepareForLaunch (double sourceBias, size_t firstIndex, size_t numIndices)
double	sourceWeight () const
virtual double	specificLuminosity (double wavelength) const =0
double	wavelengthBias () const
WavelengthDistribution *	wavelengthBiasDistribution () const
Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const
template<class T >
T *	interface (int levels=-999999, bool setup=true) const
virtual string	itemName () const
void	setup ()
string	typeAndName () const
Public Member Functions inherited from Item
	Item (const Item &)=delete
virtual	~Item ()
void	addChild (Item *child)
const vector< Item * > &	children () const
virtual void	clearItemListProperty (const PropertyDef *property)
void	destroyChild (Item *child)
virtual bool	getBoolProperty (const PropertyDef *property) const
virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const
virtual double	getDoubleProperty (const PropertyDef *property) const
virtual string	getEnumProperty (const PropertyDef *property) const
virtual int	getIntProperty (const PropertyDef *property) const
virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const
virtual Item *	getItemProperty (const PropertyDef *property) const
virtual string	getStringProperty (const PropertyDef *property) const
int	getUtilityProperty (string name) const
virtual void	insertIntoItemListProperty (const PropertyDef *property, int index, Item *item)
Item &	operator= (const Item &)=delete
Item *	parent () const
virtual void	removeFromItemListProperty (const PropertyDef *property, int index)
virtual void	setBoolProperty (const PropertyDef *property, bool value)
virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)
virtual void	setDoubleProperty (const PropertyDef *property, double value)
virtual void	setEnumProperty (const PropertyDef *property, string value)
virtual void	setIntProperty (const PropertyDef *property, int value)
virtual void	setItemProperty (const PropertyDef *property, Item *item)
virtual void	setStringProperty (const PropertyDef *property, string value)
void	setUtilityProperty (string name, int value)
virtual string	type () const
Public Member Functions inherited from WavelengthRangeInterface
virtual	~WavelengthRangeInterface ()
virtual Range	wavelengthRange () const =0

Protected Member Functions
	SphericalCellSource ()
Snapshot *	createAndOpenSnapshot () override
Protected Member Functions inherited from ImportedSource
	ImportedSource ()
	~ImportedSource ()
virtual Snapshot *	createAndOpenSnapshot ()=0
void	setupSelfAfter () override
Protected Member Functions inherited from Source
	Source ()
void	informAvailableWavelengthRange (Range available, string itemType)
Random *	random () const
void	setupSelfBefore () override
Protected Member Functions inherited from SimulationItem
	SimulationItem ()
virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const
virtual void	setupSelfAfter ()
virtual void	setupSelfBefore ()
Protected Member Functions inherited from Item
	Item ()
Protected Member Functions inherited from SourceWavelengthRangeInterface
	SourceWavelengthRangeInterface ()
Protected Member Functions inherited from WavelengthRangeInterface
	WavelengthRangeInterface ()

Private Types
using	BaseType = ImportedSource
using	ItemType = SphericalCellSource

Private Attributes
AutoRevolveType	_autoRevolve
int	_numAzimuthRevolveBins
int	_numInclinationRevolveBins

Friends
class	ItemRegistry

Detailed Description

A SphericalCellSource instance represents a primary radiation source with a spatial and spectral luminosity distribution described by a list of spherical cells lined up with the spherical coordinate axes; refer to the SphericalCellSnapshot class for more information. The cell data is usually extracted from a cosmological simulation snapshot, and it must be provided in a column text file formatted as described below.

Refer to the description of the TextInFile class for information on overall formatting and on how to include header lines specifying the units for each column in the input file. In case the input file has no unit specifications, the default units mentioned below are used instead. The number of columns expected in the input file depends on the options configured by the user for this SphericalCellSource instance, including the selected SEDFamily:

$$r_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{p}\mathrm{c}){\theta }_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{d}\mathrm{e}\mathrm{g}){\phi }_{\mathrm{m}\mathrm{i}\mathrm{n}}(\mathrm{d}\mathrm{e}\mathrm{g})r_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{p}\mathrm{c}){\theta }_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{d}\mathrm{e}\mathrm{g}){\phi }_{\mathrm{m}\mathrm{a}\mathrm{x}}(\mathrm{d}\mathrm{e}\mathrm{g})[v_x(\mathrm{k}\mathrm{m}/\mathrm{s})v_y(\mathrm{k}\mathrm{m}/\mathrm{s})v_z(\mathrm{k}\mathrm{m}/\mathrm{s})[{\sigma }_v(\mathrm{k}\mathrm{m}/\mathrm{s})][M_{\mathrm{c}\mathrm{u}\mathrm{r}\mathrm{r}}({\mathrm{M}}_{\odot })]b(1)\dots \text{SED family parameters}\dots$$

The first six columns specify the coordinates of the bordering surfaces of the cell. The autoRevolve property controls a feature to automatically revolve 2D data to 3D. See the SphericalCellSnapshot class for more information.

If the importVelocity option is enabled, the next three columns specify the $v_r$, $v_{\theta }$, $v_{\phi }$ components of the bulk velocity, in spherical coordinates, for the source population represented by the cell. If additionally the importVelocityDispersion option is enabled, the next column specifies the velocity dispersion ${\sigma }_v$, adjusting the velocity for each photon packet launch with a random offset sampled from a spherically symmetric Gaussian distribution. If the importCurrentMass option is enabled, the next column provides the current mass of the cell, $M_{\mathrm{c}\mathrm{u}\mathrm{r}\mathrm{r}}$. This mass is currently only used for probing the input model. If the importBias option is enabled, the next column specifies the bias parameter, $b$, which is used to bias the photon sampling for each cell (see the documentation of the ImportedSource class).

The remaining columns specify the parameters required by the configured SED family to select and scale the appropriate SED. For example for the Bruzual-Charlot SED family, the remaining columns provide the initial mass, the metallicity, and the age of the stellar population represented by the cell. Refer to the documentation of the configured type of SEDFamily for information about the expected parameters and their default units.

This item type is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

Member Enumeration Documentation

AutoRevolveType

enum class SphericalCellSource::AutoRevolveType : int

strong

The enumeration type for selecting the auto-revolve option.

None : "no auto-revolve" .

Inclination : "auto-revolve inclination" .

Azimuth : "auto-revolve azimuth" .

InclinationAndAzimuth : "auto-revolve both inclination and azimuth" .

Constructor & Destructor Documentation

SphericalCellSource()

SphericalCellSource::SphericalCellSource ( )

inlineprotected

Default constructor for concrete Item subclass SphericalCellSource : "a primary source imported from spherical cell data" .

Member Function Documentation

autoRevolve()

SphericalCellSource::autoRevolve ( ) const

inline

This function returns the value of the discoverable AutoRevolveType enumeration property autoRevolve : "automatically revolve 1D or 2D data to a 3D model" .

The default value for this property is given by the conditional value expression "None" .

createAndOpenSnapshot()

Snapshot * SphericalCellSource::createAndOpenSnapshot ( )

overrideprotectedvirtual

This function constructs a new SphericalCellSource object, calls its open() function, and returns a pointer to the object. Ownership of the Snapshot object is transferred to the caller.

Implements ImportedSource.

numAzimuthRevolveBins()

SphericalCellSource::numAzimuthRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numAzimuthRevolveBins : "the number of azimuth bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveAzimuth|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

numInclinationRevolveBins()

SphericalCellSource::numInclinationRevolveBins ( ) const

inline

This function returns the value of the discoverable integer property numInclinationRevolveBins : "the number of inclination bins for auto-revolving 1D or 2D data" .

This property is relevant only if the Boolean expression "autoRevolveInclination|autoRevolveInclinationAndAzimuth" evaluates to true after replacing the names by true or false depending on their presence.

The minimum value for this property is "2" .

The maximum value for this property is "1024" .

The default value for this property is given by the conditional value expression "16" .

---

The documentation for this class was generated from the following file:

• SphericalCellSource.hpp
