BinnedWavelengthDistribution Class Reference

#include <BinnedWavelengthDistribution.hpp>

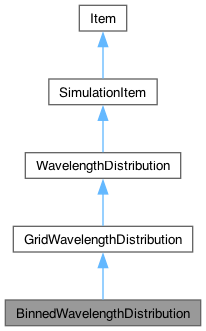

Inheritance diagram for BinnedWavelengthDistribution:

Protected Member Functions
	BinnedWavelengthDistribution ()
double	wavelengthInBin (int ell) const override
Protected Member Functions inherited from GridWavelengthDistribution
	GridWavelengthDistribution ()
void	setupSelfAfter () override
Protected Member Functions inherited from WavelengthDistribution
	WavelengthDistribution ()
Random *	random () const
void	setupSelfBefore () override
Protected Member Functions inherited from SimulationItem
	SimulationItem ()
virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const
Protected Member Functions inherited from Item
	Item ()

Private Types
using	BaseType
using	ItemType

Friends
class	ItemRegistry

Additional Inherited Members
Public Member Functions inherited from GridWavelengthDistribution
double	generateWavelength () const override
double	probability (double wavelength) const override
DisjointWavelengthGrid *	wavelengthGrid () const
Public Member Functions inherited from SimulationItem
template<class T>
T *	find (bool setup=true) const
template<class T>
T *	interface (int upLevels, int downLevels, bool setup) const
virtual string	itemName () const
void	setup ()
string	typeAndName () const
Public Member Functions inherited from Item
	Item (const Item &)=delete
virtual	~Item ()
void	addChild (Item *child)
const vector< Item * > &	children () const
virtual void	clearItemListProperty (const PropertyDef *property)
void	destroyChild (Item *child)
virtual bool	getBoolProperty (const PropertyDef *property) const
virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const
virtual double	getDoubleProperty (const PropertyDef *property) const
virtual string	getEnumProperty (const PropertyDef *property) const
virtual int	getIntProperty (const PropertyDef *property) const
virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const
virtual Item *	getItemProperty (const PropertyDef *property) const
virtual string	getStringProperty (const PropertyDef *property) const
int	getUtilityProperty (string name) const
virtual void	insertIntoItemListProperty (const PropertyDef *property, int index, Item *item)
Item &	operator= (const Item &)=delete
Item *	parent () const
virtual void	removeFromItemListProperty (const PropertyDef *property, int index)
virtual void	setBoolProperty (const PropertyDef *property, bool value)
virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)
virtual void	setDoubleProperty (const PropertyDef *property, double value)
virtual void	setEnumProperty (const PropertyDef *property, string value)
virtual void	setIntProperty (const PropertyDef *property, int value)
virtual void	setItemProperty (const PropertyDef *property, Item *item)
virtual void	setStringProperty (const PropertyDef *property, string value)
void	setUtilityProperty (string name, int value)
virtual string	type () const

Detailed Description

BinnedWavelengthDistribution is a specialty class for representing wavelength probability distributions derived from a wavelength grid that can be configured by the user, in which the generated wavelengths are spread across the full width of each bin instead of being concentrated at the bin's characteristic wavelength. This allows a relatively coarse wavelength grid to still yield a quasi-continuous sampling of wavelength space, for example to properly represent the continuum near an emission or absorption line without requiring an unnecessarily fine wavelength grid (and the corresponding increase in computational cost).

When a BinnedWavelengthDistribution instance is used as the wavelength bias distribution for a source with a composite bias factor of one, the source will emit photon packets across the full width of the (in-range) bins of the configured grid, with equal probability per bin, and with a uniform probability density within each bin. More precisely, the BinnedWavelengthDistribution instance uses only the bins of the configured grid for which the characteristic wavelength falls inside the wavelength range of the associated source (obtained through the SourceWavelengthRangeInterface). If none of the characteristic wavelengths fall inside the source range, a fatal error is issued.

See also DiscreteWavelengthDistribution, which offers similar functionality but concentrates the generated wavelengths at the bin's characteristic wavelength instead. This is required, for example, when mimicking codes that emit photon packets at a fixed set of discrete wavelengths.

Constructor & Destructor Documentation

BinnedWavelengthDistribution()

BinnedWavelengthDistribution::BinnedWavelengthDistribution ( )

inlineprotected

Default constructor for concrete Item subclass BinnedWavelengthDistribution: "a binned wavelength probability distribution derived from a wavelength grid".

Member Function Documentation

wavelengthInBin()

double BinnedWavelengthDistribution::wavelengthInBin ( int ell ) const

overrideprotectedvirtual

This function returns a random wavelength, uniformly distributed across the full width of the given bin.

Implements GridWavelengthDistribution.

---

The documentation for this class was generated from the following file:

• BinnedWavelengthDistribution.hpp
