Detailed Description

The Sphere1DSpatialGrid class is a subclass of the SphereSpatialGrid class, and represents a one-dimensional, spherically symmetric spatial grid. Each cell in such a grid is a spherical shell. A grid with $N_r$ cells is specified through a set of $N_r+1$ radial grid points $r_i,i=0,\dots ,N_r$, with $0\le r_{\text{min}}=r_0$, $r_i<r_{i+1}$, and $r_{N_r}=r_{\text{max}}$.

This item type is allowed only if the Boolean expression "!Dimension2&!Dimension3" evaluates to true after replacing the names by true or false depending on their presence.

Constructor & Destructor Documentation

Sphere1DSpatialGrid()

Sphere1DSpatialGrid::Sphere1DSpatialGrid ( )

inlineprotected

Default constructor for concrete Item subclass Sphere1DSpatialGrid : "a 1D spherically symmetric spatial grid" .

Member Function Documentation

cellIndex()

int Sphere1DSpatialGrid::cellIndex ( Position  bfr ) const

overridevirtual

This function returns the index $m$ of the cell that contains the position $\mathbf{r}$. It just determines the index of the radial bin containing the position, and returns that number.

Implements SpatialGrid.

centralPositionInCell()

Position Sphere1DSpatialGrid::centralPositionInCell ( int  m ) const

overridevirtual

This function returns the central location of the cell with index $m$. The cell index $m$ corresponds to the radial bin with lower border index $i=m$, and the central radius is determined using

$$r=\frac{r_i+r_{i+1}}{2}.$$

The returned position is arbitrarily located on the x-axis.

Implements SpatialGrid.

createPathSegmentGenerator()

std::unique_ptr< PathSegmentGenerator > Sphere1DSpatialGrid::createPathSegmentGenerator ( ) const

overridevirtual

This function creates and hands over ownership of a path segment generator (an instance of a PathSegmentGenerator subclass) appropriate for a spherical grid, implemented as a private PathSegmentGenerator subclass.

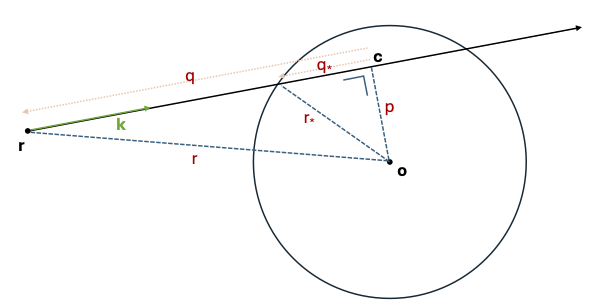

The figure above is drawn in the plane containing the coordinate system origin $\mathbf{o}$ and the path under consideration, defined by its starting point $\mathbf{r}$ and direction vector $\mathbf{k}$. Now consider the point of closest approach $\mathbf{c}$. The distance $q$ from $\mathbf{c}$ to $\mathbf{r}$ can be obtained by projecting the position vector $\mathbf{r}$ onto the line formed by the path. Assuming $\mathbf{k}$ is normalized to unity, this distance is given by the dot product $q=\mathbf{r}\cdot \mathbf{k}$. The resulting value is negative if $\mathbf{r}$ is before $\mathbf{c}$ (i.e. it is going inward) and positive if $\mathbf{r}$ is after $\mathbf{c}$ (i.e. it is going outward). We further define the impact parameter $p$ as the distance of closest approach. From the rectangular triangles illustrated in the figure it is easily seen that $p^2+q^2=r^2$ and $p^2+q_{\ast }^2=r_{\ast }^2$. The segment generator uses these relations to step the path through the consecutive spherical bins, updating the value of $q$ along the way as a proxy for updating $\mathbf{r}$.

Implements SpatialGrid.

diagonal()

double Sphere1DSpatialGrid::diagonal ( int  m ) const

overridevirtual

This function returns the "diagonal" of the cell with index $m$. The cell index $m$ corresponds to the radial bin with lower border index $i=m$. The function simply returns the cell width, i.e. the difference between the outer and inner cell radius.

Implements SpatialGrid.

dimension()

int Sphere1DSpatialGrid::dimension ( ) const

overridevirtual

This function returns the dimension of the grid, which is 1.

Implements SpatialGrid.

meshRadial()

Sphere1DSpatialGrid::meshRadial ( ) const

inline

This function returns the value of the discoverable item property meshRadial : "the bin distribution in the radial direction" .

The default value for this property is given by the conditional value expression "LinMesh" .

numCells()

int Sphere1DSpatialGrid::numCells ( ) const

overridevirtual

This function returns the number of cells $N_r$ in the grid.

Implements SpatialGrid.

randomPositionInCell()

Position Sphere1DSpatialGrid::randomPositionInCell ( int  m ) const

overridevirtual

This function returns a random location in the cell with index $m$. The cell index $m$ corresponds to the radial bin with lower border index $i=m$, and a random radius is determined using

$$r={(r_i^3+\mathcal{X}(r_{i+1}^3-r_i^3))}^{1/3}$$

with $\mathcal{X}$ a random deviate. This random radius is combined with a random position on the unit sphere to obtain a random position in the cell.

Implements SpatialGrid.

setupSelfAfter()

void Sphere1DSpatialGrid::setupSelfAfter ( )

overridevirtual

This function sets up a number of data members that depend on the Mesh object configured for this grid.

Reimplemented from SimulationItem.

volume()

double Sphere1DSpatialGrid::volume ( int  m ) const

overridevirtual

This function returns the volume of the cell with index $m$. The cell index $m$ corresponds to the radial bin with lower border index $i=m$, and the volume is easily calculated as

$$V=\frac{4\pi }{3}(r_{i+1}^3-r_i^3),$$

with $r_i$ and $r_{i+1}$ the inner and outer radius of the shell respectively.

Implements SpatialGrid.

write_xy()

void Sphere1DSpatialGrid::write_xy ( SpatialGridPlotFile *  outfile ) const

overrideprotectedvirtual

This function writes the intersection of the grid with the xy plane to the specified SpatialGridPlotFile object.

Reimplemented from SpatialGrid.

---

The documentation for this class was generated from the following file:

• Sphere1DSpatialGrid.hpp
