TetraMeshSpatialGrid Class Reference

#include <TetraMeshSpatialGrid.hpp>

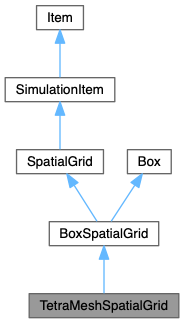

Inheritance diagram for TetraMeshSpatialGrid:

Classes
struct	Face
class	Tetra

Public Types
enum class	Policy : int {   Uniform , CentralPeak , DustDensity , ElectronDensity ,   GasDensity , File }

Public Member Functions
int	cellIndex (Position bfr) const override
Position	centralPositionInCell (int m) const override
std::unique_ptr< PathSegmentGenerator >	createPathSegmentGenerator () const override
double	diagonal (int m) const override
string	filename () const
int	numCells () const override
int	numSamples () const
Policy	policy () const
Position	randomPositionInCell (int m) const override
bool	refine () const
double	volume (int m) const override
void	writeGridPlotFiles (const SimulationItem *probe) const override
Public Member Functions inherited from BoxSpatialGrid
Box	boundingBox () const override
int	dimension () const override
double	maxX () const
double	maxY () const
double	maxZ () const
double	minX () const
double	minY () const
double	minZ () const
virtual Box	boundingBox () const =0
virtual int	cellIndex (Position bfr) const =0
virtual Position	centralPositionInCell (int m) const =0
virtual std::unique_ptr< PathSegmentGenerator >	createPathSegmentGenerator () const =0
virtual double	diagonal (int m) const =0
virtual int	dimension () const =0
virtual int	numCells () const =0
virtual Position	randomPositionInCell (int m) const =0
virtual double	volume (int m) const =0
virtual void	writeGridPlotFiles (const SimulationItem *probe) const
Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const
template<class T >
T *	interface (int levels=-999999, bool setup=true) const
virtual string	itemName () const
void	setup ()
string	typeAndName () const
Public Member Functions inherited from Item
	Item (const Item &)=delete
virtual	~Item ()
void	addChild (Item *child)
const vector< Item * > &	children () const
virtual void	clearItemListProperty (const PropertyDef *property)
void	destroyChild (Item *child)
virtual bool	getBoolProperty (const PropertyDef *property) const
virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const
virtual double	getDoubleProperty (const PropertyDef *property) const
virtual string	getEnumProperty (const PropertyDef *property) const
virtual int	getIntProperty (const PropertyDef *property) const
virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const
virtual Item *	getItemProperty (const PropertyDef *property) const
virtual string	getStringProperty (const PropertyDef *property) const
int	getUtilityProperty (string name) const
virtual void	insertIntoItemListProperty (const PropertyDef *property, int index, Item *item)
Item &	operator= (const Item &)=delete
Item *	parent () const
virtual void	removeFromItemListProperty (const PropertyDef *property, int index)
virtual void	setBoolProperty (const PropertyDef *property, bool value)
virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)
virtual void	setDoubleProperty (const PropertyDef *property, double value)
virtual void	setEnumProperty (const PropertyDef *property, string value)
virtual void	setIntProperty (const PropertyDef *property, int value)
virtual void	setItemProperty (const PropertyDef *property, Item *item)
virtual void	setStringProperty (const PropertyDef *property, string value)
void	setUtilityProperty (string name, int value)
virtual string	type () const
Public Member Functions inherited from Box
	Box ()
	Box (double xmin, double ymin, double zmin, double xmax, double ymax, double zmax)
	Box (Vec rmin, Vec rmax)
void	cellIndices (int &i, int &j, int &k, Vec r, int nx, int ny, int nz) const
Vec	center () const
bool	contains (const Box &box) const
bool	contains (double x, double y, double z) const
bool	contains (Vec r) const
double	diagonal () const
void	extend (const Box &box)
const Box &	extent () const
void	extent (double &xmin, double &ymin, double &zmin, double &xmax, double &ymax, double &zmax) const
Vec	fracPos (double xfrac, double yfrac, double zfrac) const
Vec	fracPos (int xd, int yd, int zd, int xn, int yn, int zn) const
bool	intersects (const Box &box) const
bool	intersects (Vec r, const Vec k, double &smin, double &smax) const
bool	intersects (Vec rc, double r) const
Vec	rmax () const
Vec	rmin () const
double	volume () const
Vec	widths () const
double	xmax () const
double	xmin () const
double	xwidth () const
double	ymax () const
double	ymin () const
double	ywidth () const
double	zmax () const
double	zmin () const
double	zwidth () const

Protected Member Functions
	TetraMeshSpatialGrid ()
void	setupSelfBefore () override
Protected Member Functions inherited from BoxSpatialGrid
	BoxSpatialGrid ()
void	setupSelfBefore () override
Protected Member Functions inherited from SpatialGrid
	SpatialGrid ()
Random *	random () const
void	setupSelfBefore () override
virtual void	write_xy (SpatialGridPlotFile *outfile) const
virtual void	write_xyz (SpatialGridPlotFile *outfile) const
virtual void	write_xz (SpatialGridPlotFile *outfile) const
virtual void	write_yz (SpatialGridPlotFile *outfile) const
Protected Member Functions inherited from SimulationItem
	SimulationItem ()
virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const
virtual void	setupSelfAfter ()
virtual void	setupSelfBefore ()
Protected Member Functions inherited from Item
	Item ()
Protected Member Functions inherited from Box
void	setExtent (const Box &extent)
void	setExtent (double xmin, double ymin, double zmin, double xmax, double ymax, double zmax)

Private Types
using	BaseType = BoxSpatialGrid
using	FourFaces = std::array< Face, 4 >
using	FourIndices = std::array< int, 4 >
using	ItemType = TetraMeshSpatialGrid

Private Member Functions
void	addCorners ()
void	buildDelaunay (tetgenio &out)
void	buildMesh ()
void	buildSearch ()
void	refineDelaunay (tetgenio &in, tetgenio &out)
void	removeInvalid ()
void	storeTetrahedra (const tetgenio &final, bool storeVertices)

Private Attributes
double	_eps
string	_filename
Log *	_log
int	_numCells
int	_numSamples
int	_numVertices
Policy	_policy
bool	_refine
BoxSearch	_search
vector< Tetra >	_tetrahedra
vector< Vec >	_vertices

Friends
class	ItemRegistry
class	MySegmentGenerator

Detailed Description

TetraMeshSpatialGrid is a concrete subclass of SpatialGrid representing a 3D tetrahedral mesh generated from a set of vertices. The resulting grid fully covers the domain by including the 8 corners of the domain as vertices. Since a tetrahedral mesh always fills the convex hull of the vertices, the domain is always fully covered. This grid will thus always have at least 8 vertices. The grid is constructed using the open-source library TetGen version 1.6.0 (released on August 31, 2020). TetGen is an advanced C++ tetrahedral mesh generator with many features. This class uses the following key features of TetGen:

• Delaunay Tetrahedralization: Generate a unique Delaunay tetrahedral mesh from a given set of vertices.
• Mesh Refinement: Refine the tetrahedral mesh using TetGen's Delaunay refinement algorithm. This option is enabled through the refine property of this class.

It should be noted that TetGen is a single-threaded library, but the algorithms used are generally quite fast. The refinement process is by far the most time-consuming part of the mesh generation.

The 3D Delaunay tetrahedralization often contains cells less suited for a computational grid. While the 2D Delaunay triangulation maximizes the smallest angle in each triangle, resulting in more regular cells, the 3D version lacks this property. Consequently, 3D tetrahedralizations frequently contain elongated, irregular cells. To address this, Delaunay refinement algorithms can be used. TetGen implements its own refinement process, applying local mesh operations like vertex smoothing, edge and face swapping, edge contraction, and vertex insertion. This refinement aims to optimize quality metrics such as the radius-edge ratio and the minimum dihedral angle. All refinement parameters are kept at their default values provided by TetGen. However, it is uncertain whether this refinement process will greatly improve the grids for radiative transfer applications.

The positions of the vertices used for generating the tetrahedral mesh are determined by the policy property. The available policies are:

• Uniform: Randomly sampled from a uniform distribution.
• CentralPeak: Randomly sampled from a distribution with a steep central peak.
• DustDensity: Randomly sampled based on the dust density distribution.
• ElectronDensity: Randomly sampled based on the electron density distribution.
• GasDensity: Randomly sampled based on the gas density distribution.
• File: Loaded from a column data file specified by the filename property, containing vertex coordinates (x, y, z) in each column.

Vertices are removed if they lie outside the simulation domain or are too close to another.

This item type is displayed only if the Boolean expression "Level2" evaluates to true after replacing the names by true or false depending on their presence.

Member Typedef Documentation

FourFaces

using TetraMeshSpatialGrid::FourFaces = std::array<Face, 4>

private

Alias for a fixed array of 4 Faces.

FourIndices

using TetraMeshSpatialGrid::FourIndices = std::array<int, 4>

private

Alias for a fixed array of 4 integer indices.

Member Enumeration Documentation

Policy

enum class TetraMeshSpatialGrid::Policy : int

strong

The enumeration type indicating the policy for determining the positions of the vertices.

Uniform : "random from uniform distribution" .

CentralPeak : "random from distribution with a steep central peak" .

DustDensity : "random from dust density distribution" .

ElectronDensity : "random from electron density distribution" .

GasDensity : "random from gas density distribution" .

File : "loaded from text column data file" .

Constructor & Destructor Documentation

TetraMeshSpatialGrid()

TetraMeshSpatialGrid::TetraMeshSpatialGrid ( )

inlineprotected

Default constructor for concrete Item subclass TetraMeshSpatialGrid : "a tetrahedral spatial grid" .

Member Function Documentation

addCorners()

void TetraMeshSpatialGrid::addCorners ( )

private

This private function adds the 8 corners of the domain to the vertex list. This way the full domain will be tetrahedralized.

buildDelaunay()

void TetraMeshSpatialGrid::buildDelaunay ( tetgenio &  out )

private

This private function constructs the Delaunay tetrahedralization using the vertices obtained from the policy. The output is placed inside the tetgenio reference.

buildMesh()

void TetraMeshSpatialGrid::buildMesh ( )

private

This private function builds the tetrahedral mesh. It starts by constructing the Delaunay tetrahedralization and optionally refines it if the refine option is set to true.

buildSearch()

void TetraMeshSpatialGrid::buildSearch ( )

private

This private function builds the search data structure for the tetrahedral mesh.

cellIndex()

int TetraMeshSpatialGrid::cellIndex ( Position  bfr ) const

overridevirtual

This function returns the index of the cell that contains the position $\mathbf{r}$. It uses a search data structure to accelerate the search. If no cell is found to contain this position, the function returns -1.

Implements SpatialGrid.

centralPositionInCell()

Position TetraMeshSpatialGrid::centralPositionInCell ( int  m ) const

overridevirtual

This function returns the centroid of the tetrahedron with index $m$.

Implements SpatialGrid.

createPathSegmentGenerator()

std::unique_ptr< PathSegmentGenerator > TetraMeshSpatialGrid::createPathSegmentGenerator ( ) const

overridevirtual

This function creates and returns ownership of a path segment generator suitable for the tetrahedral spatial grid, implemented as a private PathSegmentGenerator subclass. The algorithm for constructing the path is taken from Maria et al. (2017).

The algorithm uses Plücker coordinates to identify the exit face of a ray inside a given tetrahedron. Plücker coordinates are a set of six values that describe a directed line in 3D space:

$${\pi }_R=\{\mathbf{k}:\mathbf{k}\times \mathbf{r}\}=\{{\mathbf{U}}_R:{\mathbf{V}}_R\}$$

where $\mathbf{r}$ is a position along the ray, and $\mathbf{k}$ is the ray's direction. The Plücker product is defined as:

$${\pi }_R\odot {\pi }_S={\mathbf{U}}_R\cdot {\mathbf{V}}_S+{\mathbf{U}}_S\cdot {\mathbf{V}}_R$$

This product determines the relative orientation between two rays:

$${\pi }_R\odot {\pi }_S=\{\begin{array}{ll}>0& ⟺S\text{ goes counterclockwise around }R\\ <0& ⟺S\text{ goes clockwise around }R\\ =0& ⟺S\text{ intersects or is parallel to }R\end{array}$$

A ray exits a tetrahedron through a particular face if the Plücker products with all three clockwise-ordered edges of that face are negative. The algorithm in Maria et al. (2017) optimizes this by requiring only two Plücker products to be evaluated. Our implementation is described below.

In the first step, the function checks whether the start point is inside the domain. If so, the current point is simply initialized to the start point. If not, the function computes the path segment to the first intersection with one of the domain walls and moves the current point inside the domain. Next, the function determines the cell index of the tetrahedron containing the current point. If none is found, the path is terminated. Before the traversal algorithm can commence, a non-leaving face must be identified. This face acts as the entry face for the ray. Note that this face does not necessarily have to be the actual entry face. This task is handled by the findEnteringFace function of the Tetra class.

Next, the traversal algorithm begins. The entering face is labeled as face 0, with its opposing vertex labeled as vertex 0. We start by evaluating the Plücker product of the ray with the edge $1\to 0$. Based on whether this product is positive or negative, the next Plücker product to evaluate is determined. If the product is negative (i.e., clockwise orientation), we evaluate the product with the edge in the clockwise direction viewed from vertex 0. The same applies for a positive product. The exit face is determined using the decision tree described in Maria et al. (2017). The distance traveled through the cell is calculated using a simple line-plane intersection:

$$s_i=\frac{\mathbf{n}\cdot (\mathbf{v}-\mathbf{r})}{\mathbf{n}\cdot \mathbf{k}}$$

where $\mathbf{n}$ is the outward-pointing normal of the face, $\mathbf{v}$ is any vertex on the exit face, and $\mathbf{r}$ is the current position.

Although the algorithm described in Maria et al. (2017) works even if one of the Plücker products is zero, we revert to a plane intersection algorithm in such cases. This approach is similar to the one used in the VoronoiMeshSnapshot class, where the closest intersection distance with all faces is found.

The algorithm continues until the exit face lies on the convex hull boundary. At this point, the path is terminated. If the exit face is not found, which should only rarely happen due to computational inaccuracies, the current point is advanced by a small distance, and the cell index is recalculated.

Implements SpatialGrid.

diagonal()

double TetraMeshSpatialGrid::diagonal ( int  m ) const

overridevirtual

This function returns the approximate diagonal of the cell with index $m$. For a tetrahedron, it takes the square root of the average of the squared edge lengths.

Implements SpatialGrid.

filename()

TetraMeshSpatialGrid::filename ( ) const

inline

This function returns the value of the discoverable string property filename : "the name of the file containing the vertex positions" .

This property is relevant only if the Boolean expression "policyFile" evaluates to true after replacing the names by true or false depending on their presence.

numCells()

int TetraMeshSpatialGrid::numCells ( ) const

overridevirtual

This function returns the number of cells in the grid.

Implements SpatialGrid.

numSamples()

TetraMeshSpatialGrid::numSamples ( ) const

inline

This function returns the value of the discoverable integer property numSamples : "the number of random positions to be used as vertices" .

The minimum value for this property is "4" .

The default value for this property is given by the conditional value expression "500" .

This property is relevant only if the Boolean expression "policyUniform|policyCentralPeak|policyDustDensity|" "policyElectronDensity|policyGasDensity" evaluates to true after replacing the names by true or false depending on their presence.

policy()

TetraMeshSpatialGrid::policy ( ) const

inline

This function returns the value of the discoverable Policy enumeration property policy : "the policy for determining the positions of the vertices" .

The default value for this property is given by the conditional value expression "DustDensity" .

randomPositionInCell()

Position TetraMeshSpatialGrid::randomPositionInCell ( int  m ) const

overridevirtual

This function returns a random location from the tetrahedron with index $m$.

Implements SpatialGrid.

refine()

TetraMeshSpatialGrid::refine ( ) const

inline

This function returns the value of the discoverable Boolean property refine : "refine the grid by performing local mesh operations" .

The default value for this property is given by the conditional value expression "false" .

refineDelaunay()

void TetraMeshSpatialGrid::refineDelaunay ( tetgenio &  in, tetgenio &  out  )

private

This private function refines the Delaunay tetrahedralization to improve cell quality. The refinement process is controlled by TetGen with default quality parameters. The input is the initial Delaunay tetrahedralization in the in tetgenio reference. The output, with the refined Delaunay tetrahedralization, is placed inside the out tetgenio reference.

removeInvalid()

void TetraMeshSpatialGrid::removeInvalid ( )

private

This private function removes vertices that are outside the domain or too close to other vertices.

setupSelfBefore()

void TetraMeshSpatialGrid::setupSelfBefore ( )

overrideprotectedvirtual

This function verifies that the attributes are correctly set, generates or retrieves vertex positions based on the configured policy, builds (and optionally refines) the tetrahedralization, and constructs the search structure to optimize the CellIndex function.

Reimplemented from BoxSpatialGrid.

storeTetrahedra()

void TetraMeshSpatialGrid::storeTetrahedra ( const tetgenio &  final, bool  storeVertices  )

private

This private function stores the tetrahedra and vertices from the final tetgenio container into the TetraMeshSpatialGrid members. The input is the tetgenio reference with the final tetrahedralization. The storeVertices parameter indicates whether to overwrite the vertices with those from the tetgenio container. This function also logs some cell statistics after it finishes transferring the data.

volume()

double TetraMeshSpatialGrid::volume ( int  m ) const

overridevirtual

This function returns the volume of the cell with index $m$.

Implements SpatialGrid.

writeGridPlotFiles()

void TetraMeshSpatialGrid::writeGridPlotFiles ( const SimulationItem *  probe ) const

overridevirtual

This function outputs the grid plot files. It writes each tetrahedral face as a triangle to the grid plot file.

Reimplemented from SpatialGrid.

---

The documentation for this class was generated from the following file:

• TetraMeshSpatialGrid.hpp
