#include <Cylinder2DSpatialGrid.hpp>

Inheritance diagram for Cylinder2DSpatialGrid:

[legend]

Public Member Functions
int	cellIndex (Position bfr) const override

Position	centralPositionInCell (int m) const override

std::unique_ptr< PathSegmentGenerator >	createPathSegmentGenerator () const override

double	diagonal (int m) const override

int	dimension () const override

Mesh *	meshRadial () const

Mesh *	meshZ () const

int	numCells () const override

Position	randomPositionInCell (int m) const override

void	setupSelfAfter () override

double	volume (int m) const override

Public Member Functions inherited from CylinderSpatialGrid
double	maxRadius () const

double	maxZ () const

double	minRadius () const

double	minZ () const

Public Member Functions inherited from SpatialGrid
virtual Box	boundingBox () const =0

virtual int	cellIndex (Position bfr) const =0

virtual Position	centralPositionInCell (int m) const =0

virtual std::unique_ptr< PathSegmentGenerator >	createPathSegmentGenerator () const =0

virtual double	diagonal (int m) const =0

virtual int	dimension () const =0

virtual int	numCells () const =0

virtual Position	randomPositionInCell (int m) const =0

virtual double	volume (int m) const =0

virtual void	writeGridPlotFiles (const SimulationItem *probe) const

Public Member Functions inherited from SimulationItem
template<class T >
T *	find (bool setup=true) const

template<class T >
T *	interface (int levels=-999999, bool setup=true) const

virtual string	itemName () const

void	setup ()

string	typeAndName () const

Public Member Functions inherited from Item
	Item (const Item &)=delete

virtual	~Item ()

void	addChild (Item *child)

const vector< Item * > &	children () const

virtual void	clearItemListProperty (const PropertyDef *property)

void	destroyChild (Item *child)

virtual bool	getBoolProperty (const PropertyDef *property) const

virtual vector< double >	getDoubleListProperty (const PropertyDef *property) const

virtual double	getDoubleProperty (const PropertyDef *property) const

virtual string	getEnumProperty (const PropertyDef *property) const

virtual int	getIntProperty (const PropertyDef *property) const

virtual vector< Item * >	getItemListProperty (const PropertyDef *property) const

virtual Item *	getItemProperty (const PropertyDef *property) const

virtual string	getStringProperty (const PropertyDef *property) const

int	getUtilityProperty (string name) const

virtual void	insertIntoItemListProperty (const PropertyDef property, int index, Item item)

Item &	operator= (const Item &)=delete

Item *	parent () const

virtual void	removeFromItemListProperty (const PropertyDef *property, int index)

virtual void	setBoolProperty (const PropertyDef *property, bool value)

virtual void	setDoubleListProperty (const PropertyDef *property, vector< double > value)

virtual void	setDoubleProperty (const PropertyDef *property, double value)

virtual void	setEnumProperty (const PropertyDef *property, string value)

virtual void	setIntProperty (const PropertyDef *property, int value)

virtual void	setItemProperty (const PropertyDef property, Item item)

virtual void	setStringProperty (const PropertyDef *property, string value)

void	setUtilityProperty (string name, int value)

virtual string	type () const

Protected Member Functions
	Cylinder2DSpatialGrid ()

void	write_xy (SpatialGridPlotFile *outfile) const override

void	write_xz (SpatialGridPlotFile *outfile) const override

Protected Member Functions inherited from CylinderSpatialGrid
	CylinderSpatialGrid ()

Box	boundingBox () const override

void	setupSelfBefore () override

Protected Member Functions inherited from SpatialGrid
	SpatialGrid ()

Random *	random () const

void	setupSelfBefore () override

virtual void	write_xy (SpatialGridPlotFile *outfile) const

virtual void	write_xyz (SpatialGridPlotFile *outfile) const

virtual void	write_xz (SpatialGridPlotFile *outfile) const

virtual void	write_yz (SpatialGridPlotFile *outfile) const

Protected Member Functions inherited from SimulationItem
	SimulationItem ()

virtual bool	offersInterface (const std::type_info &interfaceTypeInfo) const

virtual void	setupSelfAfter ()

virtual void	setupSelfBefore ()

Protected Member Functions inherited from Item
	Item ()

Private Types
using	BaseType = CylinderSpatialGrid

using	ItemType = Cylinder2DSpatialGrid

Private Member Functions
bool	getCoords (int m, double &Rmin, double &zmin, double &Rmax, double &zmax) const

int	index (int i, int k) const

Private Attributes
Mesh *	_meshRadial

Mesh *	_meshZ

int	_Ncells

int	_NR

int	_Nz

Array	_Rv

Array	_zv

Friends
class	ItemRegistry

class	MySegmentGenerator

Detailed Description

The Cylinder2DSpatialGrid class is subclass of the CylinderSpatialGrid class, and represents axisymmetric spatial grids based on cylindrical coordinates. The grid is defined in the meridional plane and rotated around the z-axis. The meridional grid is specified through two sets of grid points:

\(N_R+1\) radial grid points \(R_i, \,i=0,\ldots,N_R\), with \(0\le R_\text{min} = R_0\), \(R_i<R_{i+1}\), and \(R_{N_R} = R_\text{max}\).
\(N_z+1\) vertical grid points \(z_k, \,k=0,\ldots,N_z\), with \(z_\text{min} = z_0\), \(z_i<z_{i+1}\), and \(z_{N_z} = z_\text{max}\).

In total there are \(N_{\text{cells}} = N_R\,N_z\) cells in the grid.

This item type is allowed only if the Boolean expression "!Dimension3" evaluates to true after replacing the names by true or false depending on their presence.

Constructor & Destructor Documentation

◆ Cylinder2DSpatialGrid()

Cylinder2DSpatialGrid::Cylinder2DSpatialGrid ( )

inlineprotected

Default constructor for concrete Item subclass Cylinder2DSpatialGrid : "a 2D axisymmetric spatial grid in cylindrical coordinates" .

Member Function Documentation

◆ cellIndex()

int Cylinder2DSpatialGrid::cellIndex ( Position bfr ) const

overridevirtual

This function returns the index \(m\) of the cell that contains the position \({\bf{r}}\). It determines the radial and vertical bin indices \(i\) and \(k\) of the cell containing the position and calculates the correct cell index based on these two numbers.

Implements SpatialGrid.

◆ centralPositionInCell()

Position Cylinder2DSpatialGrid::centralPositionInCell ( int m ) const

overridevirtual

This function returns the central location of the cell with index \(m\). It determines the radial and vertical bin indices \(i\) and \(k\) corresponding to the index \(m\). The cylindrical coordinates of the central position are subsequently determined from

\[ \begin{split} R &= \frac{R_i + R_{i+1}}{2} \\ \phi &= 0 \\ z &= \frac{z_k + z_{k+1}}{2} \end{split} \]

Implements SpatialGrid.

◆ createPathSegmentGenerator()

std::unique_ptr< PathSegmentGenerator > Cylinder2DSpatialGrid::createPathSegmentGenerator ( ) const

overridevirtual

This function creates and hands over ownership of a path segment generator (an instance of a PathSegmentGenerator subclass) appropriate for a 2D cylindrical grid, implemented as a private PathSegmentGenerator subclass.

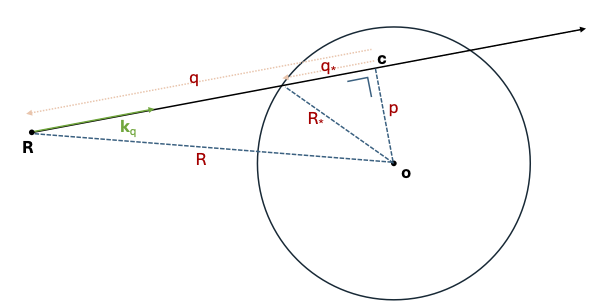

The figure above is a projection on the equatorial plane. It shows coordinate system origin \(\bf{o}\) and the path under consideration, defined by its projected starting point \(\bf{R}\) and projected direction vector \(\bf{k}_\text{q}\). Now consider the point of closest approach \(\bf{c}\). The distance \(q\) from \(\bf{c}\) to \(\bf{R}\) can be obtained by projecting the position vector \({\bf{R}}\) onto the line formed by the path. This distance is given by \(q=\bf{R}\cdot\bf{k}_\text{q}/||\bf{k}_\text{q}||\), where we divided the dot product by the norm of the projected direction vector because it is not normalized. The resulting value is negative if \(\bf{R}\) is before \(\bf{c}\) (i.e. it is going inward) and positive if \(\bf{R}\) is after \(\bf{c}\) (i.e. it is going outward). We further define the impact parameter \(p\) as the distance of closest approach. From the rectangular triangles illustrated in the figure it is easily seen that \(p^2 + q^2 = R^2\) and \(p^2 + q_*^2 = R_*^2\). To obtain the actual 3D distance traveled, the \(q\) values must be divided by the projected direction cosine \(||\bf{k}_\text{q}||\).

In the vertical direction, the distance to the intersection of the path with a horizontal plane at height \(z_*\) is given by \((z_*-z)/k_\text{z}\) as usual.

The segment generator uses these relations to step the path through the cells, finding the nearest intersection and updating the values of \(q\), \(\bf{R}\) and \(z\) along the way as a proxy for updating the 3D position \({\bf{r}}\).

Implements SpatialGrid.

◆ diagonal()

double Cylinder2DSpatialGrid::diagonal ( int m ) const

overridevirtual

This function returns the "diagonal" of the cell with index \(m\). It determines the radial and vertical bin indices \(i\) and \(k\) corresponding to the index \(m\), and then calculates the distance between the outer/upper and inner/lower corners of the cell in the meridional plane.

Implements SpatialGrid.

◆ dimension()

int Cylinder2DSpatialGrid::dimension ( ) const

overridevirtual

This function returns the dimension of the grid, which is 2.

Implements SpatialGrid.

◆ getCoords()

bool Cylinder2DSpatialGrid::getCoords	(	int	m,
		double &	Rmin,
		double &	zmin,
		double &	Rmax,
		double &	zmax
	)		const

private

This function obtains the coordinates in the meridional plane for the corners of the cell with index \(m\). It determines the radial and vertical bin indices \(i\) and \(k\) corresponding to the index \(m\) using \(i=\lfloor m/N_z \rfloor\) and \(k=m\,\text{mod}\,N_z\).

If both the resulting bin indices are within range, the function stores the corresponding cell corner coordinates in the provided arguments and returns true. If any of the indices are out of range, the function returns false and the contents of the provided arguments remains unchanged.

◆ index()

int Cylinder2DSpatialGrid::index	(	int	i,
		int	k
	)		const

private

This function returns the index \(m\) corresponding to the radial index \(i\) and the vertical index \(k\). The correspondence is simply \(m=k+N_z\,i\).

◆ meshRadial()

Cylinder2DSpatialGrid::meshRadial ( ) const

inline

This function returns the value of the discoverable item property meshRadial : "the bin distribution in the radial direction" .

The default value for this property is given by the conditional value expression "LinMesh" .

◆ meshZ()

Cylinder2DSpatialGrid::meshZ ( ) const

inline

This function returns the value of the discoverable item property meshZ : "the bin distribution in the Z direction" .

The default value for this property is given by the conditional value expression "LinMesh" .

◆ numCells()

int Cylinder2DSpatialGrid::numCells ( ) const

overridevirtual

This function returns the number of cells \(N_R\,N_z\) in the grid.

Implements SpatialGrid.

◆ randomPositionInCell()

Position Cylinder2DSpatialGrid::randomPositionInCell ( int m ) const

overridevirtual

This function returns a random location in the cell with index \(m\). It determines the radial and vertical bin indices \(i\) and \(k\) corresponding to the index \(m\), and then generates the cylindrical coordinates of a random position using

\[ \begin{split} R &= \sqrt{R_i^2 + {\cal{X}}_1\,(R_{i+1}^2-R_i^2)} \\ \phi &= 2\pi\,{\cal{X}}_2 \\ z &= z_k + {\cal{X}}_3\, (z_{k+1}-z_k), \end{split} \]

with \({\cal{X}}_1\), \({\cal{X}}_2\) and \({\cal{X}}_3\) three uniform deviates.

Implements SpatialGrid.

◆ setupSelfAfter()

void Cylinder2DSpatialGrid::setupSelfAfter ( )

overridevirtual

This function sets up a number of data members that depend on the Mesh objects configured for this grid.

Reimplemented from SimulationItem.

◆ volume()

double Cylinder2DSpatialGrid::volume ( int m ) const

overridevirtual

This function returns the volume of the cell with index \(m\). It determines the radial and vertical bin indices \(i\) and \(k\) corresponding to the index \(m\), and then calculates the volume as

\[ V = \pi (R_{i+1}^2-R_i^2) (z_{k+1}-z_k). \]

Implements SpatialGrid.

◆ write_xy()

void Cylinder2DSpatialGrid::write_xy ( SpatialGridPlotFile * outfile ) const

overrideprotectedvirtual

This function writes the intersection of the grid with the xy plane to the specified SpatialGridPlotFile object.

Reimplemented from SpatialGrid.

◆ write_xz()

void Cylinder2DSpatialGrid::write_xz ( SpatialGridPlotFile * outfile ) const

overrideprotectedvirtual

This function writes the intersection of the grid with the xz plane to the specified SpatialGridPlotFile object.

Reimplemented from SpatialGrid.

The documentation for this class was generated from the following file:

Cylinder2DSpatialGrid.hpp
